DAKE CORPORATION

Hydraulic Press, Pump Type Manual, Frame Type H-Frame, Frame Capacity 10 ton

Hover over image to magnify

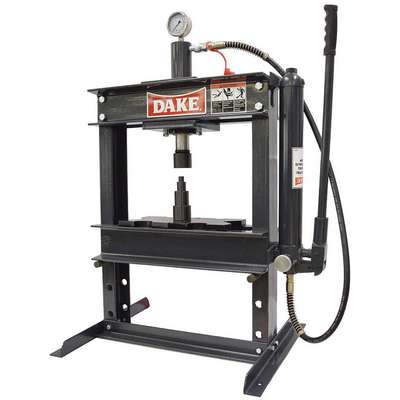

Manual Hydraulic Press,10 Tons
Manual Hydraulic Press,10 Tons
Double tap image to magnify
Manual Hydraulic Press,10 Tons
Manual Hydraulic Press,10 Tons

#914166-5Pkg Qty: 1

$644.49 pkg | $644.49 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Base Length
23 in.
Overall Length
23 in.
Base Width
23 in.
Overall Width
18 in.
Brand
DAKE CORPORATION
Pack Quantity
1
Characteristics
Economical
Pressure
10 tons
Cylinder
Fixed
Pump
Mfr. No. 301121
Cylinder Stroke
6 in.
Pump Type
Manual
Cylinder Type
Single Acting
Ram Travel
10 in.
Design
H-Frame
Reservoir Capacity
24 oz.
Frame Capacity
10 tons
Shipping Weight
135 lb.
Frame Type
H-Frame
Stroke
26 in.
Height with Screw Extension
36 in.
Total Height
36 in.
Hose Size
Rubber
Total Width
23 in.
Item
Hydraulic Press
Working Height
16 in.
Mfr. Part Number
972200
Working Width
16-3/4 in.
Overall Height
36 in.
General
Adjustable Bed
Yes
Material - Machining
Iron
Application
Pressing, Straightening, Bending, Forming, Punching, Staking and Clamping
Max. Ram Advance Speed
1/8 in/stroke
Distance Between Uprights
16 3/4 in
Max. Ram-to-Table Distance
16 in
Features
Bolted Channel Iron Frame, Economical
Min. Ram-to-Table Distance
4 in
Includes
Combination Table Plates and V-block
Width Between Table Channels
3 in

Product Description

Hydraulic Presses

  • For pressing, bending, and straightening operations.
  • Dake Utility H-Frame
  • Feature a fast, efficient, single-speed hand pump, and a large dia. single-acting polished piston with a convenient top-mounted gauge. Cylinder can be relocated to the right or left. Table is adjustable.
