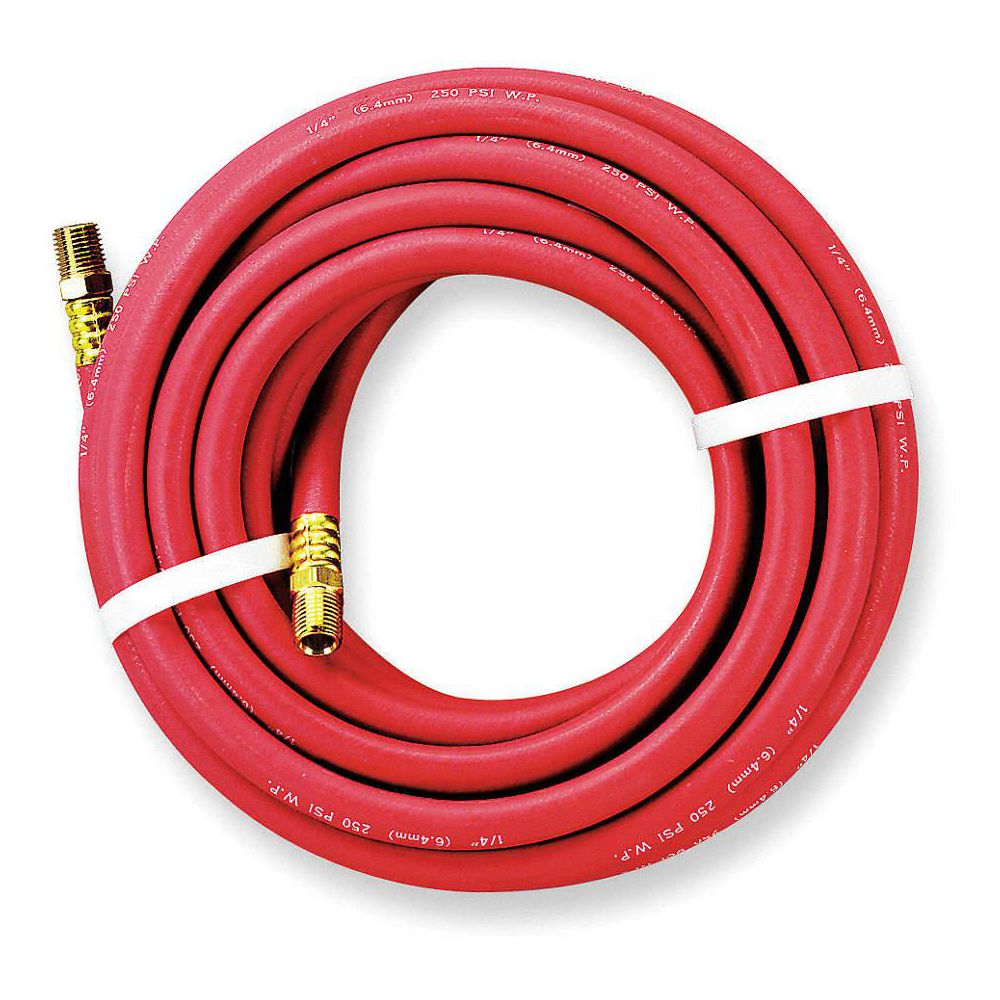

Air Hose: 1/4 in Hose Inside Dia., Red, Brass 1/4 in MNPT x Brass 1/4 in MNPT, Nitrile

Hover over image to magnify
Multipurpose Air Hose,1/4 In.,
Multipurpose Air Hose,1/4 In.,

#914152-3 | Pkg Qty: 1

$53.96 pkg | $53.96 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SPEEDAIRE
Item
Air Hose
Color Family
Red
Maximum Pressure
250 psi
Coupled Assembly/Bulk
Coupled Assembly
Mfr. Part Number
20027063
Cover Material
Nitrile
Outside Diameter
1/2 in.
Fitting Material
Brass
Package Quantity
1
Fitting Size
1/4 in. x 1/4 in.
Shipping Weight
2.25 lb.
Fitting Type
MNPT x MNPT
Subgroup | Pneumatic Hose
Multipurpose Air Hose
Hose Length
25 ft.
Temperature Range
-20 deg. F to 190 deg. F
Hose Media
Air, Mild Chemicals, Water
Tube Material
Nitrile
Inside Diameter
1/4 in.
General
Coupling Material
Brass
Hose Fittings
Brass 1/4 in MNPT x Brass 1/4 in MNPT
For Media Type
Acetic Acid, Air, Bleach, Calcium Chloride, Carbon Dioxide, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Glycerin, Isopropanol, Ketones, Methanol, Nitrogen Gas, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Solvents, Sulfuric Acid, Water
Hose Outside Dia.
1/2 in
Hose Configuration
Coupled Assembly
Hose Tube Material
Nitrile
Hose Cover Material
Nitrile
Max. Working Pressure @ 70 F
250 psi
Hose Fitting A Material
Brass
Not Recommended Chemicals
Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (37%), Hydrogen Peroxide, Kerosene, Liquid Propane, LP Gas, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Natural Gas, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Oxygen, Parrafins (Wax), Potassium Hydroxide (50%), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Steam, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
Hose Fitting A Type
MNPT
Safety Factor
4:1
Hose Fitting B Material
Brass
Standards
RMA Class C
Hose Fitting B Type
MNPT

Product Description

Oil-resistant nitrile air hose assemblies with nitrile covers are used to carry compressed air to pneumatic tools and equipment in industrial-service, construction, and low-pressure spray applications. The hoses have a nitrile tube and a nitrile cover that resist oils, solvents, and aromatics. They are well suited for applications that require a hose with moderate oil resistance.

Air hose assemblies come with fittings installed on both ends of the hose for connecting the hose to pneumatic tools and equipment. Also known as pneumatic hoses or air compressor hoses, air hoses are used to carry compressed air to tools and equipment. These hoses are uncoiled and can be stored on a reel to keep them out of the way when not in use.
