Home All Products Hose & Hose Ends Hoses Steam Hoses SKU: 914147
Share
Print
APPROVED SUPPLIER

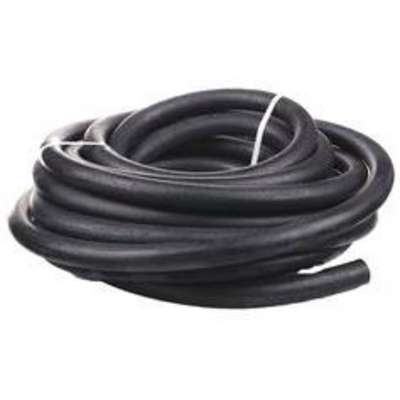

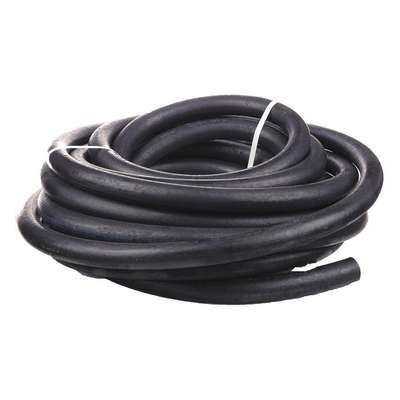

50 ft. Black Bulk Steam Hose; Temp. Range - Steam Hose: 0° to 450°F, 3/4" Inside Dia. - Steam Hose

Hover over image to magnify
Hose,Steam,3/4x50ft
Hose,Steam,3/4x50ft

#914147 | Pkg Qty: 1

$472.06 pkg | $472.06 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Steam Hose
Color Family
Black
Mfr. Part Number
20023410
Hose Inside Diameter
3/4 in.
Package Quantity
1
Hose Length
50 ft.
Shipping Weight
31.55 lb.
Hose Material
EPDM
Temperature Range
0 deg. F to 450 deg. F
Hose Outside Diameter
1-1/4 in.
General
For Media Type
Acetic Acid, Air, Bleach, Calcium Chloride, Carbon Dioxide, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Glycerin, Isopropanol, Ketones, Methanol, Nitrogen Gas, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Solvents, Steam, Sulfuric Acid, Water
Hose Tube Material
EPDM
Hose Configuration
Bulk Hose
Max. Working Pressure @ 70 F
250 psi
Hose Cover Material
EPDM
Not Recommended Chemicals
Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (37%), Hydrogen Peroxide, Kerosene, Liquid Propane, LP Gas, Lubricated Air, Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Natural Gas, Nitric Acid (20% Solution), Nitric Acid (50% Solution), Oxygen, Parrafins (Wax), Potassium Hydroxide (50%), Refrigerant R-12, Refrigerant R-134a, Refrigerant R-22, Refrigerant R-404A, Refrigerant R-407C, Refrigerant R-502, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
Hose Inside Dia.
3/4 in
Safety Factor
1899-12-31 10:01:00
Hose Outside Dia.
1.25
Temp. Range
0 Degrees to 450 Degrees F

Product Description

These bulk steam hoses have an EPDM (ethylene propylene diene monomer) tube and cover that provide excellent resistance to ozone, good resistance to high temperatures and chemicals, and poor resistance to petroleum fluids.

Bulk steam hoses are used to create custom hoses for conveying pressurized hot water in steam-cleaning, steam-pumping, heat-control, fire-prevention, thawing, blow-out service, and hoisting applications. They are designed to withstand high temperatures and pressures and are used in harsh environments like steel mills, refineries, shipyards, foundries, and chemical plants. The hoses have a pinpricked cover that allows gases or vapors trapped in the hose carcass to escape so they don't create a blister in the cover of the hose. Bulk hoses can be cut to the desired length, and compatible fittings can be added on the ends of the hoses to connect them to equipment.
