WESTWARD

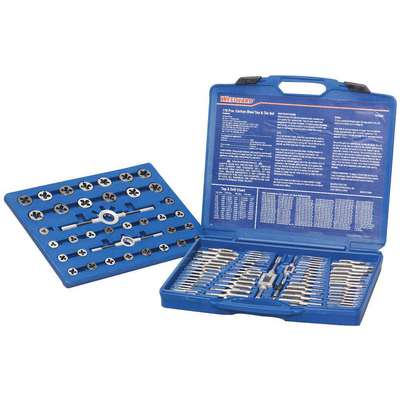

110-Piece Carbon Steel Tap and Die Set with #4 to 3/4", M6 to M18 Size Range
Hover over image to magnify
#914134-5 | Pkg Qty: 1
$505.52 pkg | $505.52 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WESTWARD
Primary Material Application
Ferrous Metal
Die Material
Carbon Steel
SAE or Metric
SAE
Die Shape
Round
Shipping Weight
17 lb.
Dimension Type
Fractional, Machine, Metric
Sizes Included
#4-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/4 in.-20, 1/4 in.-24, 1/4 in.-28, 1/4 in.-32, 5/16 in.-18, 5/16 in.-24, 3/8 in.-16, 3/8 in.-24, 7/16 in.-14, 7/16 in.-20, 1/2 in.-13, 1/2 in.-20, 9/16 in.-12, 9/16 in.-18, 5/8 in.-11, 5/8 in.-18, 3/4 in.-10, 3/4 in.-16, M6x1.0, M8x1.25, M10x1.0, M10x1.5, M11x1.5, M12x1.5, M12x1.75, M14x1.25, M18x1.5, 1/8 in.-27NPT, 1/4 in.-18NPT
Item
Tap and Die Set
Spiral Direction
Right Hand
Left/Right Hand
Right Hand
Tap Chamfer
Plug, Taper
Material
Carbon Steel
Tap Dimension Type
Inch, Machine, Metric
Meets
American Metal Cutting Institute Standards for Cut Thread Tolerance, ANSI-B94-1987 Standards
Tap Finish
Bright (Uncoated)
Mfr. Part Number
1PZ54
Tap Material
Carbon Steel
Number of Pieces
110
Tap Size
#4 to 3/4 in., M6 to M18, 1/8 to 1/4 in. NPT
Pack Quantity
1
Thread Direction
Right Hand
General
Case Type
Plastic Case
Max. Tap Thread Size
M18
Class of Fit
2A
Measurement System
Fractional Inch
Coolant Fed
Non-Coolant Through
Number of Dies in Set
35
Die Finish
Bright (Uncoated)
Primary Material Application ISO Code
H
Die Type
Adjustable
Standards
American Metal Cutting Institute Standards for Cut Thread Tolerance, ANSI-B94-1987 Standards
Dimensions Standard
ANSI B1.1
Tap Material Grade
GCr15
Includes
2 Straight Tap Wrenches, T-Handle Tap Wrench, Die Stocks, Plastic Case
Tap Shank Dia.
0.14 in, 0.18 in, 0.20 in, 0.22 in, 0.24 in, 0.28 in, 0.31 in, 0.35 in, 0.41 in, 0.43 in, 0.47 in, 0.55 in
Material - Machining
Carbon Steel
Tap Type
Straight Flute
Max. Die Thread Size
3/4"-16
Thread Standard
Metric, NPT, UNC, UNF
Product Description
Taps and Dies
- Fully ground Custom-fit, blow-molded case
- Quickly restore or create internal or external threads in a wide range of sizes. Use on UNC, UNF, NPT, and NPTF threading. Include threading specialties for tapping drill sizes. Meet American Metal Cutting Institute Standards for cut thread tolerance and ANSI-B94-1987 standards.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Tap/Die Set,110 Pc,High Carbon
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1PZ54 | Tap/Die Set, 110 Pc,High |
 | UNSPSC CODES | 23241615 | |
 | VMRS (ATA) CODES | 053-006-009 | Tap/Die Set, 110 Pc,High |
