ARO

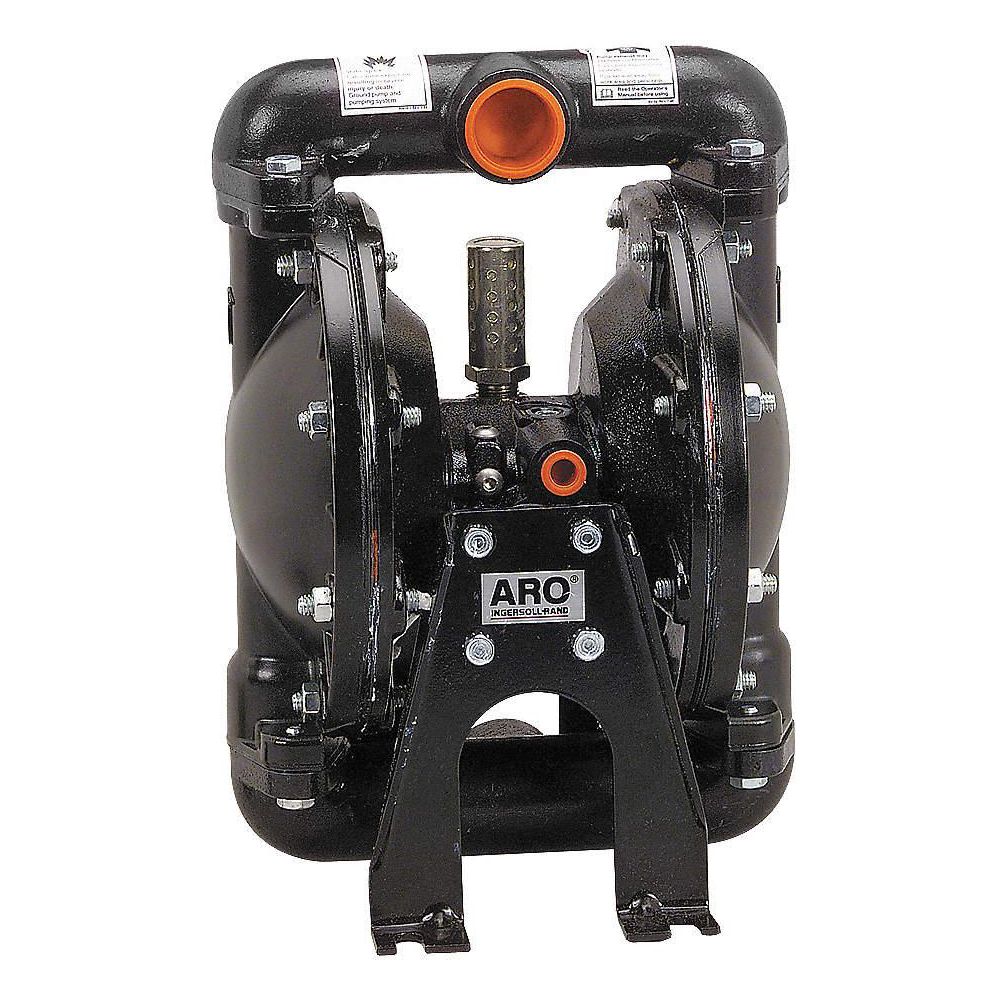

Double Diaphragm Pump: 1 in Inlet/Outlet Size, NPT Connection, 1/4 in FNPT Air Inlet Size
Hover over image to magnify
#914104-9 | Pkg Qty: 1
$1,886.10 pkg | $1,886.10 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
ATEX, CE, RoHS, REACH
Manifold Connection
Single
Air Inlet Size
1/4 in. FNPT
Maximum Diameter Solids
1/8 in.
Ball Material
Santoprene®
Maximum Flow
35 gpm
Body Material
Aluminum
Maximum Flow (GPM)
35
Brand
ARO
Maximum Operating PSI
120
Check Seat Material
Polypropylene
Maximum Operating Pressure
120 psi
Connection Style
NPT
Maximum Temperature (Deg. F)
150°F
Diaphragm Design
Santoprene®
Mfr. Part Number
666100-3EB-C
Diaphragm Material
Santoprene®
Mfr. Warranty Length
5 yr.
Flow
22 gpm
Operation Type
Air Operated
Height
12-1/2 in.
Package Quantity
1
Housing Material
Aluminum
Pump Operation Type
Air Operated
Inlet/Outlet
1 in.
Self-Priming Dry
20 ft.
Inlet/Outlet Size
1 in.
Shipping Weight
20.05 lb.
Item
Double Diaphragm Pump
Valve Type
Ball
Length
8-9/16 in.
Width
8 in.
General
Diaphragm Material - Pumps
Santoprene(R)
Max. Dia. Solids
1/8 in
Housing Material - Pumps
Aluminum
Product Description
Metallic Air-Operated Double Diaphragm Pumps ARO Self-priming pumps are capable of running dry and can easily handle slurries, solvents, and other high-viscosity liquids. Constructed of highly fatigue- and abrasion-resistant materials. Air-pressure air valve design helps prevent stalling. General Purpose
Expertly Selected Product Pairings
Item Barcode
Double Diaphragm Pump,Air
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2CAV1 | Double Diaphragm |
 | UNSPSC CODES | 40151548 | |
 | VMRS (ATA) CODES | 053-006-009 | Double Diaphragm |
