ROBERTS

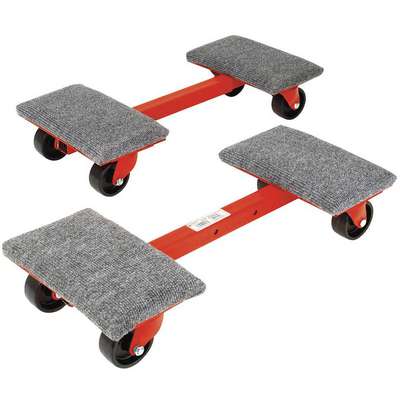

Roberts 24 to 33"L x 10-1/4"W x 4-3/4"H Red Heavy Cargo Adjustable Dolly, 1000 lb. Load Capacity

Hover over image to magnify
Cargo Dolly,1000 Lb,Adj.24 To
PI_Asset_1502333
Cargo Dolly,1000 Lb,Adj.24 To
PI_Asset_1502333

#914055-3 | Pkg Qty: 1

$191.29 pkg | $191.29 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
ROBERTS
Mfr. Part Number
10-575
Caster Wheel Bearings
Ball Bearing
Number of Casters
4
Caster Wheel Diameter
3 in.
Overall Height
4-3/4 in.
Caster Wheel Material
Polyurethane
Overall Length
33 in.
Caster Wheel Type
Solid
Overall Width
10-1/4 in.
Caster Wheel/Tread Material
Polyurethane
Package Quantity
1
Color Family
Red
Platform Height
4-3/4 in.
Deck Height
4-3/4 in.
Platform Material
Carpeted
Deck Length
33 in.
Platform Style
Open, Carpeted Raised Ends
Deck Width
10-1/4 in.
Platform Width
10-1/4 in.
Frame Finish
Powder Coated
Shipping Weight
32.8 lb.
Frame Material
Steel
Wheel Diameter
3 in.
Item
Adjustable-Length Open-Deck Steel General Purpose Dolly
Wheel Type
Swivel
Load Capacity
1000 lb.
General
Assembled
Yes
Compatible with Product Type
Carpet, Sheeting, Furniture, Appliances and Equipment
Axle Dia.
3/8 in
Deck LxWxH
33 in x 10 1/4 in x 4 3/4 in
Brake Type
No Caster Brake
Deck Material
Steel
Caster Frame Material
Steel
Deck Surface
Carpeted
Caster Inside Bolt Hole Spacing
1 3/8 in × 2 3/8 in
Deck Thickness
5/8 in
Caster Mounting Plate Size
3 1/2 in × 2 1/2 in
Features
2. Great for easily moving rolls of carpet, sheeting, furniture, appliances and equipment.3. Use the spring-loaded lock pin to adjust the dollies.4. Non-Marring casters provide easy, free movement without damaging floors.
Caster Mounting Type
Plate
For Surface Type
Carpet, Concrete, Hard Surfaces, Tile, Wood
Caster Outside Bolt Hole Spacing
2 in × 3 3/8 in
Includes Reinforcing Cross Brace
Without Reinforcing Cross Brace
Caster Wheel Dia.
3 in
Includes Tow Eye
Without Towing Eye
Caster Wheel Type/Material
Solid Polyurethane
Lip Type
Flush
Caster Wheel Width
1 1/4 in
Non-Marking Casters/Wheels
Yes
Caster/Wheel Configuration
(4) Swivel
Number of Caster Wheels
4
Center Opening Length
12 1/2 in
Overall LxWxH
33 in x 10 1/4 in x 4 3/4 in
Center Opening LxW
12 1/2 in x 10 1/8 in
Securing Mechanism
No Securing Mechanism
Center Opening Width
10 1/8 in
Wheel Type/Material
Solid Polyurethane

Product Description

The deck on these dollies can be made longer or shorter to hold different sizes of loads. The length is adjusted with a spring-loaded lock pin. Steel dollies are more resistant to cracks and scratches than aluminum, plastic, or wood dollies. These dollies have a large open space in the middle of their deck that prevents debris from collecting on the deck. Also known as H-deck dollies, open-deck dollies weigh less and are easier to carry than solid-deck dollies. These dollies are sold as a pair.
