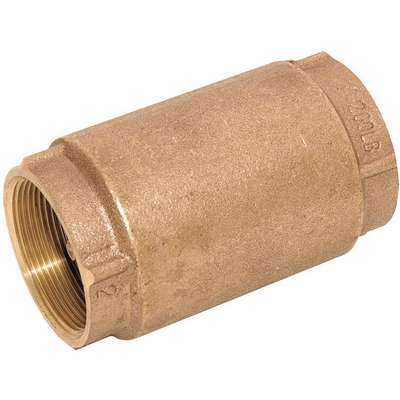

3/4" Check Valve, Archetype: Single, Inline Spring, FNPT x FNPT
Hover over image to magnify
#914043-8 | Pkg Qty: 1
$52.17 pkg | $52.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
6AJY2
Connection Type
NPT
Mounting Position
Horizontal or Vertical (Flow Up Only)
Item
Spring Check Valve
Overall Height
2-23/32 in.
Length
2-3/4 in.
Package Quantity
1
Material
Bronze
Shipping Weight
1 lb.
Maximum Temperature
250 deg. F
Width
1-9/16 in.
General
Application - Valves
General Purpose
Max. Water Pressure - Valves
200 psi
Body Material - Valves
Bronze
Mechanism and Body Design
Inline Spring
Flow - Valves
13.6 gpm
Mounting Orientation
Horizontal, Vertical
Flow Design
Single
Pipe or Tube Size
3/4 in
Max. Temp. - Valves
250 Degrees F
Standards
Meets MSS SP80
Product Description
Bronze Spring Check Valves
- Max. temperature: 250°F Max. pressure: 200 psi WOG
- Spring-actuated valves open and close by liquid flow. Bronze body with 304 stainless steel spring. Can be mounted vertically (flow up only) or horizontally.
- Material meets ANSI B2.1, ISO 9002, MSS SP80, and ASTM B584, C89844 standards. Threaded ends meet ANSI B2.11 standards. Sweat ends meet ANSI B16.18 standards.
- Note: Not for use as a foot valve or reciprocating air compressor service.
Item Barcode
Spring Check Valve,Bronze,3/4
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6AJY2 | Spring Check Valve,Bronze, |
 | UNSPSC CODES | 40141622 | |
 | VMRS (ATA) CODES | 053-007-022 | Spring Check Valve,Bronze, |
