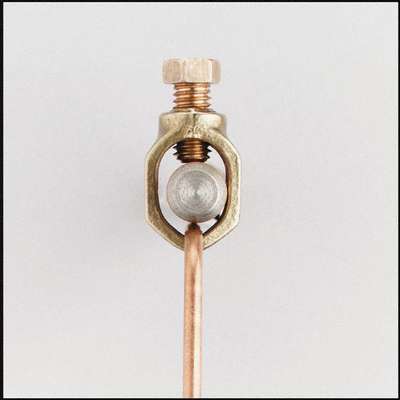

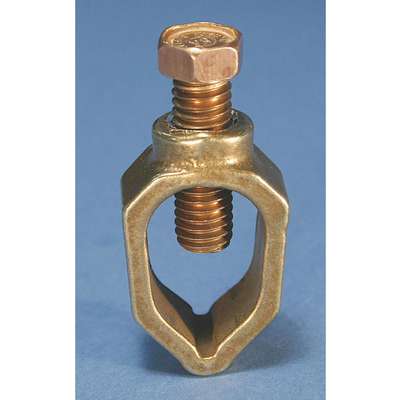

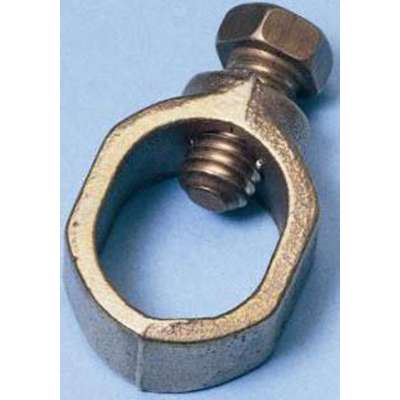

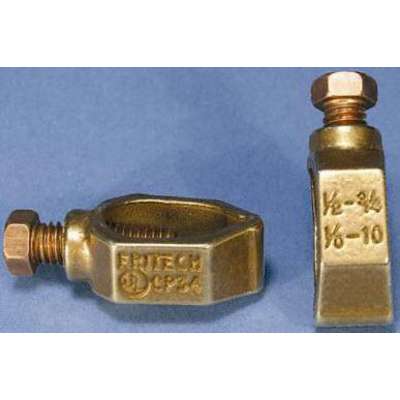

Erico Grounding Connector: 8 AWG SOL to 2 AWG STR Grounding Wire Size, Bronze, Mechanical

Name: Erico Grounding Connector: 8 AWG SOL to 2 AWG STR Grounding Wire Size, Bronze, Mechanical
Brand: ERICO
SKU: 9140321
Price: 6.37 USD
Availability: InStock

Hover over image to magnify

#914032-1 | Pkg Qty: 1

$6.37 pkg | $6.37 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Brand

ERICO

Mfr. Part Number

CP34

Conductor Size

8 Solid to 2 Stranded

Number of Wires

Description/Special Features

Suitable for Direct Burial Applications

Package Quantity

Grounding Connector Material

Bronze

Rod Diameter

3/4 in.

Grounding Wires Connected To

3/4 in. Rod

Shipping Weight

.13 lb.

Item

Grounding Connector

Type

Acorn

Material

Bronze

Wire Size

8 AWG SOL to 2 AWG STR

Material of Construction

Bronze

General

For Maximum Ground Conductor Wire Size

1/0 AWG STR

Special Features

Suitable for Direct Burial Applications

For Minimum Ground Conductor Wire Size

10 AWG SOL

Standards

For Rod Dia.

1/2 in to 5/9 in

Torque

150 in-lb

For Use With

Copper-Bonded Ground Rods

Type - Grounding Connector

Mechanical

Grounding Wire Size

8 AWG SOL to 2 AWG STR

Wrench Size

1/2 in

Number of Wires - Grounding

Product Description

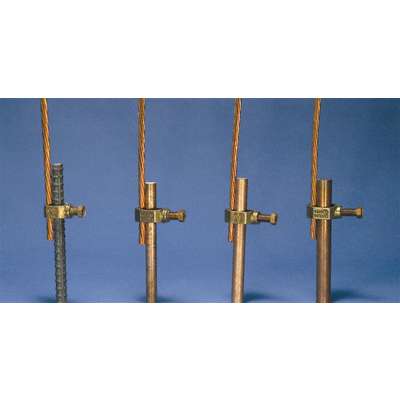

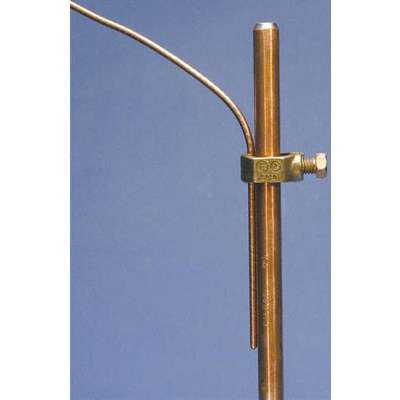

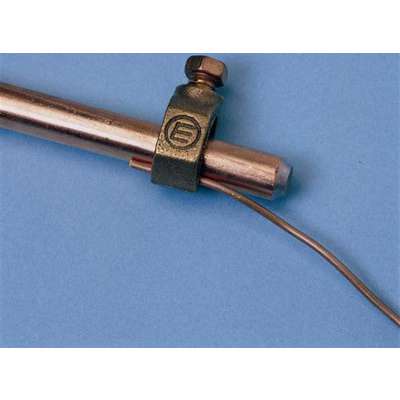

The ERITECH® ground clamp provide a cost-effective method for connecting conductors to ground rods. Stands up to over tightening. Use with 1/2", 5/8", and 3/4" ground rods. Designed to accept a conductor range from #8 solid to 1/0 stranded. Clamp withstands a minimum torque of 300 in.-lb. CSA Certified.
