SPEEDAIRE

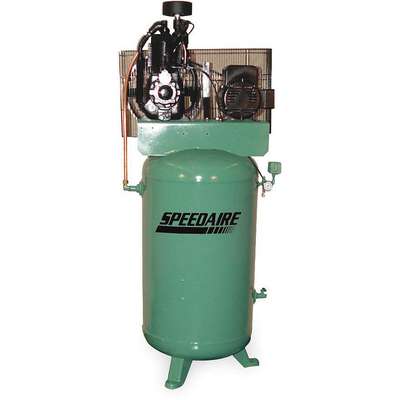

1 Phase - Electrical Vertical Tank Mounted 5.00HP - Air Compressor Stationary Air Compressor, 80 gal

Hover over image to magnify
Electric Air Compressor,2
Electric Air Compressor,2

#914014-9 | Pkg Qty: 1

$5,519.81 pkg | $5,519.81 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
(F)NPT Outlet
1/2 in.
Mfr. Part Number
4XA63
Air Consumption
scfm
Number of Stages
2
Amperage
23.0/21.0 A
Overall Height
75 in.
Amps AC
23.0<lt/>SNF/<gt/>21.0
Overall Length
35 in.
Brand
SPEEDAIRE
Overall Width
27 in.
Compressor Package Type
Base Model
Package Quantity
1
Compressor Type
Tank Mounted
Phase
1
Control
Dual Control
Pump Location
Tank Mounted
Cylinder Material
Aluminum with Cast Iron Liner
Pump RPM
710
Duty Cycle
80/20
Pump Type
Cast Iron
Enclosure
NEMA 1
RPM
710
Finish
Enamel
Shipping Weight
590 lb.
Free Air CFM @ Max Pressure
17.3
Tank Size
80 gal.
Horsepower
5
Tank Style
Vertical
Hz
60
Tank Type
Vertical
Input Voltage
240 VAC
Type
2 Stage Pressure Lubricated
Item
Electric Air Compressor
Voltage
230
Lubrication Type
Pressure Lubricated
Width
24 in.
Maximum Pressure
175 psi
General
ASME Tank
Yes
Motor Starter Included
Yes
Air Tank Size
80 gal
Number of Stages - Air Compressor
2
Air Tank Style
Vertical
Off Pressure Switch Setting
175 psi
Compressor Voltage
208V AC
On Pressure Switch Setting
140 psi
Free Air CFM @ 175 PSI
16.5
Outlet Gender
Female
Free Air CFM @ Max. Pressure - Air Compressor
17.3
Output Power
5 hp
Free Air Flow Rate @ Max Pressure
17.3 cfm
Phase - Electrical
1
Free Air Flow Rate @ Maximum Pressure
17.3 cfm
Pump Location - Air Compressor
Tank Mounted
HP
5
Pump Oil Capacity
2 qt
HP - Air Compressor
5.0 hp
Sound Level Range
Standard (70 dBA or more)
Includes
Initial Fill of Compressor Oil, Manual Drain Valve, Oil Site Glass, Precision Bearing, Pressure Gauge, Pressure Relief Valve
Standards
California Code 462(L)(2), ASME
Input Voltage - Air Compressor
208V AC
Style - Air Compressor
Simplex
Lubrication Type - Air compressor
Pressure Lubricated
Tank Size - Air Compressor
80 gal
Max Operating Pressure
175 psi
Tank Style - Air Compressor
Vertical
Max. Pressure - Air Compressor
175 psi
dBA @ 3 Feet
81

Product Description

This Speedaire® 2-stage, pressure-lubricated air compressor features a direct, positive displacement oil pump that can lubricate critical internal components. Low rpm for long service life. Compressor must be hardwired. Model includes a spin-on oil filter, oversized intake filter/silencer, and a totally enclosed belt guard. 80/20 duty cycle. 100% duty cycle can be achieved with the use of Speedaire Synthetic-Based Lubricant No. 1WG49, sold separately.
