CHICAGO PNEUMATIC

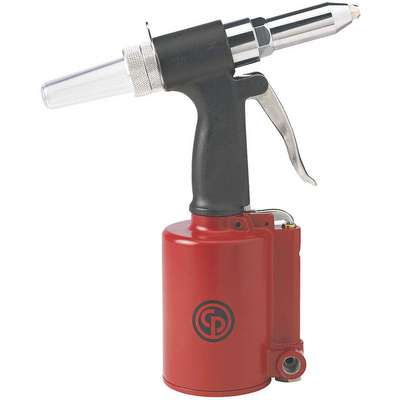

Chicago Pneumatic General Duty Air Riveter; 1/8", 5/32", 3/32", 3/16" Blind Rivet Dia.

Hover over image to magnify
Air Riveter,General,2110 Lb.
PI_Asset_1763180
Air Riveter,General,2110 Lb.
PI_Asset_1763180
Chicago Pneumatic General Duty Air Riveter; 1/8", 5/32", 3/32", 3/16" Blind Rivet Dia. Video

#914004 | Pkg Qty: 1

$254.33 pkg | $254.33 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
(F)NPT Inlet
1/4 in.
Maximum Pressure
90 psi
Air Consumption
scfm
Mfr. Part Number
CP9882
Brand
CHICAGO PNEUMATIC
Minimum Hose Size
3/8 in.
CFM per Stroke
1
Package Quantity
1
Construction
Composite
Pulling Force
2200 lb.
Diameter
3/16 in.
Shipping Weight
3.95 lb.
Duty
General
Tool Weight
3.3 lb.
Item
Air Riveter
Type
Standard Duty
Length
8-29/32 in.
General
Air Pressure
90 psi
Max. Air Pressure
90 psi
Blind Rivet Dia. - Aluminum
3/32 in, 1/8 in, 5/32 in, 3/16 in
Min. Air Pressure
90 psi
Features
Number Plates
Nose Dia.
3/32 in, 1/8 in, 5/32 in, 3/16 in
Includes
(4) Nosepieces 3/32 in, 1/8 in, 5/32 in, 3/16 in, and Twist Off Cup for Storage
Nose Length
3 in
Includes Mandrel Collection
Yes

Product Description

Air-powered blind rivet installation tools compress blind rivets to join two pieces of metal. Rivets are placed into a pre-drilled hole, and the tool compresses the end and breaks the rivet mandrel to leave a clean surface. The rivet mandrel is then ejected from the tool. Blind rivets (sometimes called pop rivets) can be installed when there is access to only one side of the workpiece.
