SCHLAGE ELECTRONICS

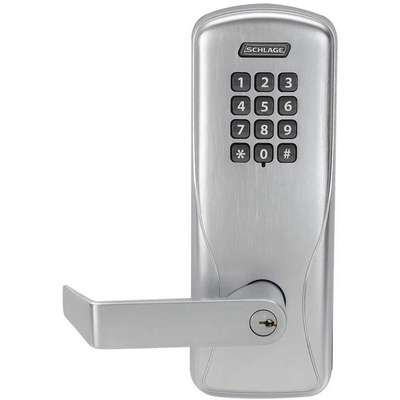

Electronic Keyless Lock, 2-3/4" Backset, Cylindrical, Satin Chrome, 3/4" Latch Length

Hover over image to magnify
CO100 Series, Cylindrical,
CO100 Series, Cylindrical,

#913989-2 | Pkg Qty: 1

$828.77 pkg | $828.77 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ADA Compliance
Yes
Latch Type
1-1/4 in. x 2 1/4 in.
Battery Life
Up to 2 yr
Lock Style
Metal
Brand
SCHLAGE ELECTRONICS
Mfr. Part Number
CO100CY50 KP RHO 626 PD
Door Plate Thickness
1-3/4 in.
Mounting Style
Cylindrical
Finish
Satin Chrome
Number of Keys
12
Function
Office with Key Override
Operating Temperature Range
-31 deg. F to 151 deg. F
Grade
1
Outside Height
9-23/50 in.
Hand
Field Reversible
Outside Width
3-1/2 in.
Handle Type
Lever
Package Quantity
1
Inside Depth
3-3/4 in.
Power Source
(4) AA Batteries
Inside Height
9-1/2 in.
Series
CO100
Inside Width
3-1/2 in.
Shipping Weight
9.91 lb.
Item
Electronic Keyless Lock
Weather Resistant
Yes
General
ADA Compliant
Yes
Latch Front Size
1-1/4 in x 2 1/4 in
Access Method
Keypad
Latch Length
3/4 in
Backset
2-3/4 in.
Lock Material
Metal
Door Thickness
1-3/4 in
Max. User Codes
5000
Electrical/Mechanical
Electrical
Operating Temp. Range
-31° to 151°F
Event Audit Trail
Up to 5000
Standards
ANSI/BHMA A156.25, Including UL294
Includes
(4) AA Batteries
Timed Entry Allowance
1 sec
Key Override Options
Schlage "C" Keyway (Included)
Timed Entry Allowance (Sec.)
<lt/> 1 second
Keypad
Button

Product Description

The SCHLAGE CO100 Series offline electronic keyless lock provides customized levels of security at each door, with a large selection of credentials and networking options. Allows addition/deletion of users, usage tracking, and data management without installing a facility-wide network. Upgrade to a network solution by replacing the network module, not the entire lock. Also provides an easy way to manage people, audits, locks, and other network panel interface devices for simple access control. Allows up to 5000 user codes and has a 6 pin full cylinder. Everest C123 Keyway with Sparta lever.
