LOCTITE

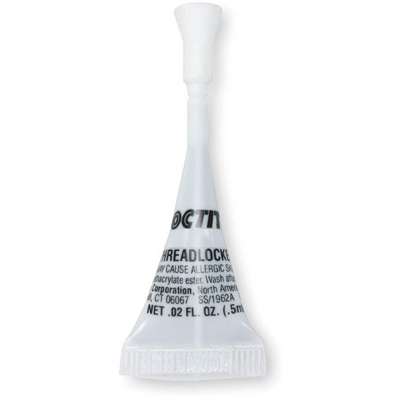

Loctite Threadlocker: Series 242, Threadlocker, Blue, Liquid, 0.5 mL, Capsule
Hover over image to magnify
#913978-3 | Pkg Qty: 1
$3.96 pkg | $3.96 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Appearance
Blue
Net Weight
1/2 mL
Begins to Harden
5 min.
Package Quantity
1
Brand
LOCTITE
Performance Temperature Range
-65 deg. F to 300 deg. F
Chemical Type
Anaerobic
Physical Form
Liquid
Color Family
Blue
Removable With
Hand Tools
Container Type
Capsule
Series
242
Fills
Gaps Between Threads
Shipping Weight
.01 lb.
Fixture Time
5 min.
Size
1/2 mL
Flash Point
200 deg. F
Specific Gravity
1.07
For Fastener Diameter
1/4 in. to 3/4 in.
Temperature Range
-65 to 300 deg. F
Full Cure
24 hr.
Threadlocker Classification
Threadlocker
Full Cure Time
1 day
Threadlocker Disassembly
Removable
Gap Fill
0.005 in.
Threadlocker Strength
Medium Strength
Item
Medium-Strength Threadlocker
Type
Removable
Mfr. Part Number
230718
Viscosity
1,200 to 5,000 cP
General
Application
Approved For Use in Or Around Food Processing Areas, Ideal For Fasteners Between 1/4 in. to 3/4 in. Dia
Minimum Viscosity
800 cps
Breakaway Torque
71 in-lb
Pack Size
1 EA
Breakaway Torque Range
51 in-lb to 100 in-lb
Prevailing Torque
4 in-lb
Clean Up Method
Solvent, Wire Brush
Product Form
Liquid
Compatible Materials
Bronze, Copper, Iron, Manganese, Nickel, Steel
Recommended Surface Preparation
Dry Surface
Compatible Primer ( Part Number)
4KL11
Removal Method
Hand Tool
Compatible Primer Series
Loctite 7649
Standards
MIL-S-46163A Type II Grade N, ASTM-D5363 Group 3 Class 2 Grade 1, NSF P1, CFIA, OSHA Hazard Communication, RoHS Compliant
Container Size Range
0.39 oz and Under
Storage Requirements
8 Degrees to 21 Degrees C
Container Size and Type
0.02 fl oz Capsule
Torque and Strength
71 in-lb Medium
Container and Size
Capsule 0.39 oz and Under
VOC Content Range
10 g/L and Under
Cure Type
Anaerobic
VOC Content Weight Percentage
0.0001
For Material Type
Brass, Bronze, Copper, Iron, Manganese, Monel, Nickel, Steel
Working Time
5 min
For Maximum Thread Diameter
3/4 in
Working Time Range
5 min or Less
Green Certification/Other Recognition
NSF® Certified (Sustainability or Environmental Standard)
Product Description
Loctite® threadlockers fills gaps between threads and securely mates surfaces to form solid, unitized assemblies. Also prevent fasteners from loosening due to vibration and protect against rust and corrosion. Fasteners can be removed with hand tools.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer - www.P65Warnings.ca.gov.
SDS Available View
Item Barcode
Threadlocker,Removable,0.5mL,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2VZC4 | Threadlocker, Removable,0. |
 | UNSPSC CODES | 31201701 | |
 | VMRS (ATA) CODES | 053-999-075 | Threadlocker, Removable,0. |
