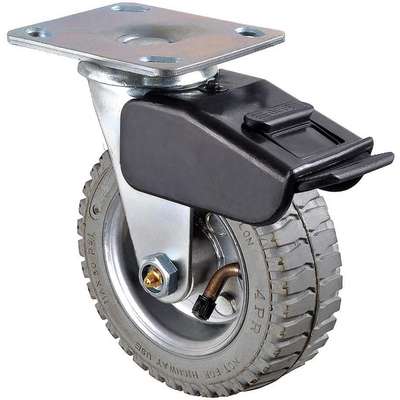

Light Duty, Swivel Plate Caster with Pneumatic Wheels; 200 lb. Load Rating, 6-1/8" Wheel Dia.

Hover over image to magnify
Swivel Pneumatic Caster w/
PI_Asset_928365
PI_Asset_947818
Swivel Pneumatic Caster w/
PI_Asset_928365
PI_Asset_947818

#913973-9 | Pkg Qty: 1

|
Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
1ULG8
Caster Brake Included
Yes
Mounting Bolt Diameter
3/8 in.
Caster Brake Type
Total Lock Brake
Mounting Height
7-1/2 in.
Caster Load Rating Range
Light Duty
Non-Marking
No
Caster Plate Hole Pattern
B
Number of Mounting Holes
4
Caster Plate Size
4 in. x 4-1/2 in.
Number of Wheels
1
Caster Raceway
Double Ball
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Wheel Bearings
Precision Ball
Pack Quantity
1
Caster Wheel/Tread Material
Rubber
Plate Caster Sub-Type
Swivel
Caster/Wheel Tread
Centipede
Shipping Weight
4.8 lb.
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
Frame Material
Steel
Wheel Color
Gray
Includes Thread Guards
Yes
Wheel Diameter
6-1/8 in.
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel Width
1-7/8 in.
Item
Plate Caster with Pneumatic Wheels
Wheel/Tread Hardness Rating
Soft
Load Rating
200 lb.
General
Brake Type
Total-Lock
Mounting Plate Size
4 in x 4-1/2 in
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4-1/2 in (B)
Caster Product Group
Swivel Caster with Total Lock
Raceway
Double Ball
Caster Temp. Range Available
No
Sub-Category
Swivel Caster
Hub Materials
Steel
Swivel Raceway Type
Double Ball
Hub Position
Symmetrical
Tire Rim Dia.
4 in
Hub Width
2-1/4"
Tire Thickness
7/8 in
Load Rating Range
0 to 299 lb
Wheel Bearing Type
Precision Ball
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 1/8 in
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Material
Rubber

Product Description

Medium-duty pneumatic plate casters have zinc-plated steel frames and lightweight wheels with air-filled tires. These casters cushion loads against shock and vibration, and they have double ball swivels that allow them to swivel smoothly. Pneumatic wheels puncture more easily than semipneumatic and flat-free wheels, and they require maintenance to keep the wheels' tires filled to the correct air pressure. They are suitable for use in areas where they will not encounter sharp debris. These casters can be used on carts, trucks, and similar equipment in locations such as warehouses, transportation facilities, lawn and garden centers, and hospitality sites.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
