Jet 1-1/2 Motor HP Floor Drill Press, Belt Drive Type, 20" Swing, 115/230 Voltage

Hover over image to magnify
Floor Drill Press, 1-1/2 Hp

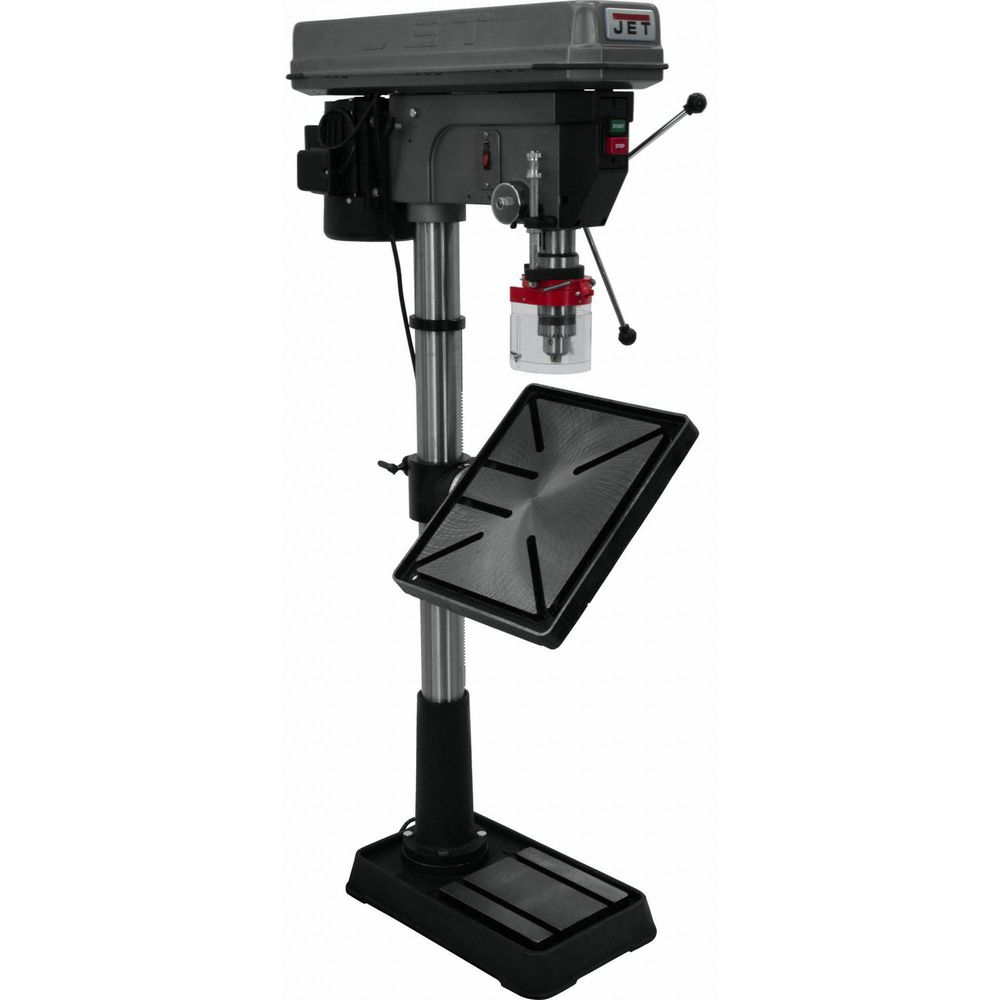

PI_Asset_971147

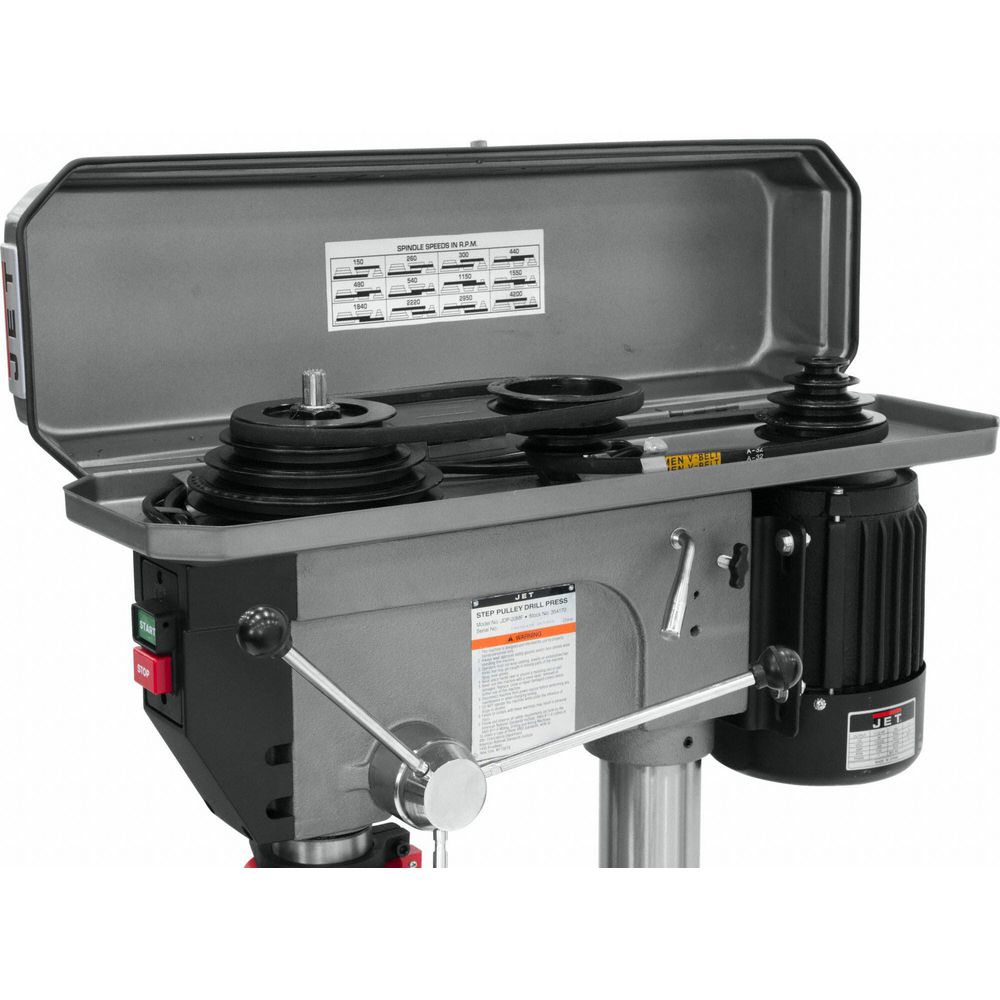

PI_Asset_971148
Floor Drill Press, 1-1/2 Hp
PI_Asset_971147
PI_Asset_971148
Jet 1-1/2 Motor HP Floor Drill Press, Belt Drive Type, 20" Swing, 115/230 Voltage Video
Jet 1-1/2 Motor HP Floor Drill Press, Belt Drive Type, 20" Swing, 115/230 Voltage Video
Jet 1-1/2 Motor HP Floor Drill Press, Belt Drive Type, 20" Swing, 115/230 Voltage Video
Jet 1-1/2 Motor HP Floor Drill Press, Belt Drive Type, 20" Swing, 115/230 Voltage Video

#913880-3 | Pkg Qty: 1

$1,640.76 pkg | $1,640.76 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Application
Drilling
Overall Depth
13 in.
Brand
JET
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Drive Type
Belt
RPM
150 to 4200
Horsepower
1-1/2 HP
Shipping Weight
305 lb.
Hz
60
Speed Control
Fixed
Item
Floor Drill Press
Swing
20 in.
Mfr. Part Number
354170
Voltage
115/230
General
Chuck Capacity
3/4 in
Maximum Spindle-to-Table Height
29 1/8 in
Chuck Style
Keyed
Minimum Spindle Speed
150 RPM
Column Diameter
3 3/8 in
Nominal Voltage
115/230V AC
Current
18/9 A
Quill Diameter
2 7/16 in
Drill Press Application
Drilling
Speed Adjustment
Step Pulley
Drill Press Type
Floor Stand
Speed Range
150 to 4,200 RPM
Drill Spindle Travel
4 in - 5 in
Spindle Speed Range
150 RPM - 4,200 RPM
Drilling Capacity in Cast Iron
1 in
Spindle Travel
4 5/8 in
Drilling Capacity in Stainless Steel
5/8 in
Spindle-to-Column Distance
10 in
Drilling Capacity in Steel
5/8 in
Table Length
18 1/2 in
Drilling Capacity in Wood
3/4 in
Table Load Capacity
80 lb
Guard Included
Yes
Table Slot
Yes
Includes
Chuck with Key
Table Slot Width
1/2 in
Maximum Overall Height
67 in
Table Tilt
45 Degrees
Maximum Spindle Speed
4,200 RPM
Table Width
16 in
Maximum Spindle-to-Base Height
46 3/4 in
Tilting Angle
45 Degrees

Product Description

General Purpose Drill Presses, Floor Drill Press, Drive Type Belt, Swing 20 in, Spindle Taper 3MT, Motor HP 1 1/2 hp, Capacity Steel 3/4 in, Capacity Cast Iron 1 in, Drilling Capacity Wood Not Specified, Includes Chuck with Key, Power Down Feed Included No, Voltage 115/230, Number of Speeds 12, Chuck Size 3/4 in, Spindle Speed 150 to 4200 rpm, Spindle Travel 4 5/8 in, Base Size 13-3/4 in x 22-3/4 in, Table Work Surface 18-1/2 in x 16 in, Hz 60, Phase 1, Number of T-Slots 6
