GENIE

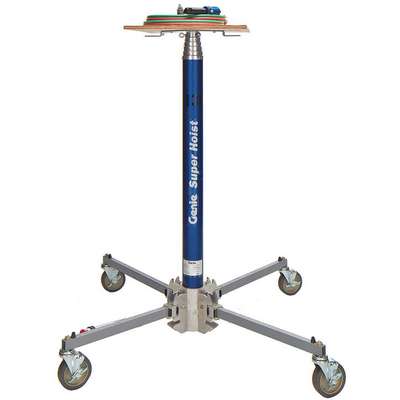

Genie Pneumatic Lift, Manual Push Equipment Lift, 300 lb. Load Capacity, Lifting Height Max.149-5/8"

Hover over image to magnify
Pltfrm Lift, 300 Lb. Cap.41
PI_Asset_1501894
Pltfrm Lift, 300 Lb. Cap.41
PI_Asset_1501894

#913862-1 | Pkg Qty: 1

$3,197.86 pkg | $3,197.86 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Base Legs Outside Dimensions
38 in.
Material
Aluminum
Brand
GENIE
Maximum Lifting Height
149-5/8 in.
Caster Wheel Type
Tread on Core
Mfr. Part Number
GH-3.8
Caster Wheel/Tread Material
Plastic
Mfr. Warranty Length
1 yr.
Frame Finish
Anodized
Minimum Lifting Height
41 in.
Frame Material
Aluminum
Overall Height
41 in.
Front Wheel Diameter
5 in.
Overall Length
29 in.
Invertible Forks
No
Overall Width
24 in.
Item
Compact Air-Powered Material Lift
Package Quantity
1
Lift Base Style
Fixed Straddle
Platform Length
24 in.
Lift Control
Hand Lever
Platform Width
24 in.
Lift Mechanism
Pneumatic
Powered By
CO2 or Compressed Air
Lift Mobility
Pneumatic Lift, Manual Push
Shipping Weight
75 lb.
Lifting Height Maximum
149-5/8 in.
Type
Standard Base
Lifting Height Minimum
41 in.
Wheel Diameter
4 in.
Load Capacity
300 lb.
Wheels
4
General
Assembled
Yes
Includes Outriggers
Without Outriggers
Axle-Mounted Wheel/Tread Material
Polyurethane
Lifting Height Max.
149 5/8 in
Base Inside Width
53 in
Lifting Height Min.
41 in
Base Legs Outside Dia.
38 in
Max. Lifting Height
149-5/8"
Base Legs Outside Dim.
38 in
Non-Marking Axle-Mounted Wheels
Yes
Base Outside Width
38 in
Non-Marking Casters/Wheels
Yes
Caster Wheel Dia.
4 in, 5 in
Overall Height with Forks Lowered
41 in
Caster Wheel Width
1 in
Overall LxWxH
29 in x 24 in x 41 in
Caster/Wheel Configuration
(4) Swivel with Brake
Rear Wheel Dia.
4 in
Features
Legs Fold Out From Base For Quick Setup And Are Held in. Position With Safety Locks
Recommended PSI
85 psi
Front Caster Dia.
5"
Standards
EC Compliant
Front Wheel Dia.
5 in
Stowed Height
41 in
Height Stowed
41 in
Stowed Length
14 in
Includes
17 in x 24 in Platform
Stowed Width
14 in

Product Description

These air-powered material lifts are used to raise and position ductwork, sprinkler system components, lighting fixtures, drywall panels, and other equipment in maintenance, contracting, construction, and similar industrial applications. They have a telescoping mast and platform that are raised and lowered with a pneumatic piston. The piston can be powered by an optional refillable C02 tank or other compressed-air source, and it is controlled with a pistol-grip handle. These air-powered material lifts have a more compact footprint than other styles of material lifts and take up less space when storing or transporting them.
