HOBART

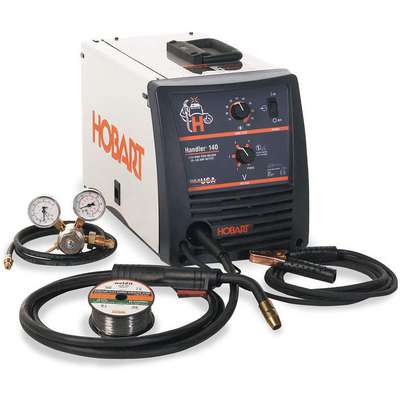

Hobart MIG Welder, Handler 140 Series, Input Voltage: 120 VAC, Flux Core, MIG

Hover over image to magnify
Welder,Mig,Wire Feed
Welder,Mig,Wire Feed
Hobart MIG Welder, Handler 140 Series, Input Voltage: 120 VAC, Flux Core, MIG Video

#913820-1 | Pkg Qty: 1

$960.09 pkg | $960.09 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
200
Overall Height
12-3/8 in.
Brand
HOBART
Overall Width
10-5/8 in.
Duty Cycle
0.2
Package Quantity
1
Hz
60
Phase
1
Input
20
Portability
Handheld Portable
Input Amps
20
Rated Output
90 A @ 18.5VDC
Input Voltage
110/115/120 VAC
Series
Handler 140
Item
MIG Welder
Shipping Weight
66 lb.
Mfr. Part Number
500559
Type
Handler Welder
OCV
28
Welded Material
Mild Steel, Aluminum, Stainless Steel
Output Range
25 to 140A DC
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Overall Depth
19-1/2 in.
General
Aluminum - Material Thickness
16 to 11 ga
Maximum Amperage Range (MIG)
Less than 150 A
Application
Maintenance, Construction, Rental, Auto Body, Farm/Ranch and Home Applications
Maximum Wire Feed Speed
700 in/min
Features
Quick Release Drive Lever and a Built in Contactor That Makes Wire Electrically Cold While Not Welding
Mild Steel - Material Thickness
24 ga to 1/4 in
For Wire Type
Flux-Cored, Solid
Minimum Wire Diameter
0.024 in (Solid Wire), 0.030 in (Flux-Cored)
Includes
0.030 in. (0.8mm) Contact Tips, 10 ft. Work Cable with Clamp, Comfortable 10 ft. HR-100 Gun, Dual-Gauge Regulator with Gas Hose, Quick Select Drive Roll for 0.024 in. (0.6mm) or 0.030/0.035 in. (08/0.9 mm) Solid Wire, and 0.030/0.035 in. (0.8/0.9 mm) Flux-Cored Wire, Sample Spool of 0.030 in. (0.8mm) Self-Shielding Flux-Cored Wire
Minimum Wire Feed Speed
40 in/min
Input (Amps)
20
Power Cord Included
Yes
Input Voltage (Nominal)
120V
Rated Output at Duty Cycle (MIG)
90 A @ 20%
Kit Includes
Contact Tips, Drive Rolls, Flow Gauge Regulator & Gas Hose, Flux-Cored Wire, MIG Gun, Work Cable with Clamp
Stainless Steel - Material Thickness
18 to 11 ga
MIG Welding Maximum Output Current
140 A
Standards
CSA Certified
MIG Welding Minimum Output Current
25 A
Welder Kit Type
MIG Package
MIG Welding Output @ Duty Cycle
90 A @ 18.5 V, 20%
Welding Mode
CV

Product Description

The Handler® 140 MIG welder features self-resetting thermal overload and motor protection. It helps to handle both GMAW (MIG) and FCAW processes.
