Home All Products Lighting Sensors, Switches and Ballasts Ballasts Hid Ballasts SKU: 913817-1

Philips Advance Metal Halide HID Ballast Kit, 400 Max. Lamp Watts, 120/208/240/277 V, Pulse Ballast Start Type

Name: Philips Advance Metal Halide HID Ballast Kit, 400 Max. Lamp Watts, 120/208/240/277 V, Pulse Ballast Start Type
Brand: PHILIPS ADVANCE
SKU: 9138171
Price: 221.06 USD
Availability: InStock

Hover over image to magnify

Philips Advance Metal Halide HID Ballast Kit, 400 Max. Lamp Watts, 120/208/240/277 V, Pulse Ballast Start Type Video

Double tap image to magnify

#913817-1Pkg Qty: 1

$221.06 pkg | $221.06 ea

In Stock

Shipping to 43085

Expected to arrive Tue. Mar 25.

Technical Specifications

Key Specifications

ANSI Code

M135/M155

Length

4-3/4 in.

Brand

PHILIPS ADVANCE

Mfr. Part Number

71A6092-001D

Height

4-7/16 in.

Number of Lamps

Package Quantity

Input Watts

452 in.

Shipping Weight

11 lb.

Insulation Class

Start Type

Pulse

Item

HID Ballast Kit

Voltage

120/208/240/277 V

Lamp Type

Metal Halide

Width

3-11/16 in.

Lamp Watts

400 W

General

Brand and Series

Advance

Operating Amps @ 120V

3.8 A

Figure Number

A26

Operating Amps @ 208V

2.2 A

Footnotes

6,3

Operating Amps @ 240V

1.9 A

Includes

Capacitor, Coil, Core, Hardware, Ignitor, Mounting Bracket

Operating Amps @ 277V

1.65 A

Min. Starting Temp.

-20 Degrees F

Operating Amps @ 480V

1899-12-31 01:00:00

Product Description

Metal-halide ballast kits include parts for replacing a ballast and its coordinating components in lighting fixtures that use metal-halide HID bulbs.

Expertly Selected Product Pairings

$12.96 pkg | $12.96 ea

Item: 911708-7 | Pkg Qty: 1

Tape,Electric,Black

Select

$268.73 pkg | $268.73 ea

Item: 912331-1 | Pkg Qty: 1

Ballast Recycling Kit, Pail, 5

Select

$10.37 pkg | $10.37 ea

Item: 918152-5 | Pkg Qty: 1

Electrical Tape,7 Mil,3/4" x

Select

$20.41 pkg | $20.41 ea

Item: 918290-3 | Pkg Qty: 1

Wire Stripper/Cutter,16-30 Awg,

Select

$23.52 pkg | $23.52 ea

Item: 918862-6 | Pkg Qty: 1

Wire Stripper,26 To 16 Awg,6-1/

Select

$15.36 pkg | $0.15 ea

Item: 919576 | Pkg Qty: 100

Twist On Wire Connector,18-10

Select

Documents

Philips Advance Ballast Quick Guide

Philips Advance Government Applications Information Sheet

Philips Advance Industrial Applications Information Sheet

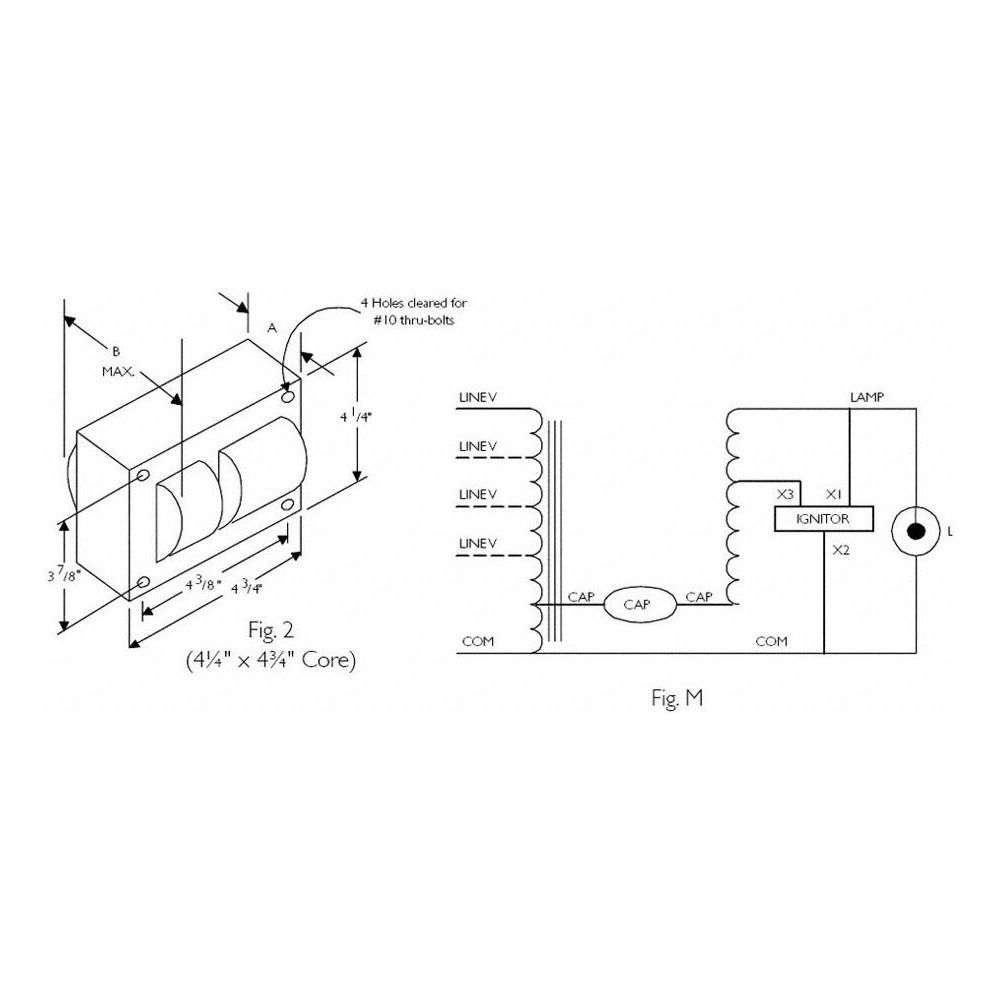

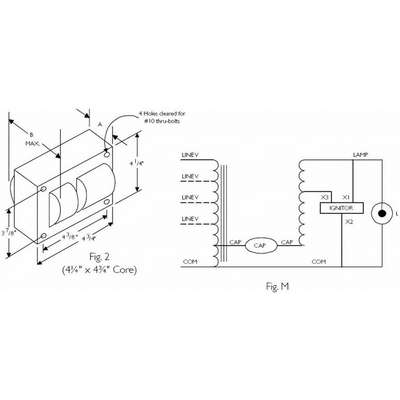

Philips Advance HID Ballast Kit Diagram
