SPEEDAIRE

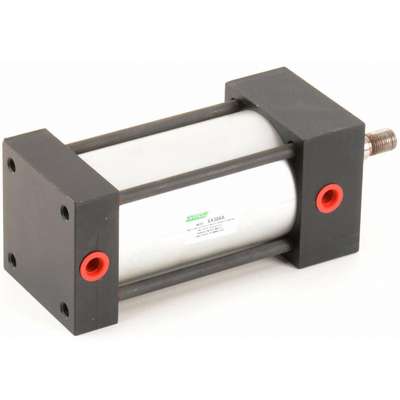

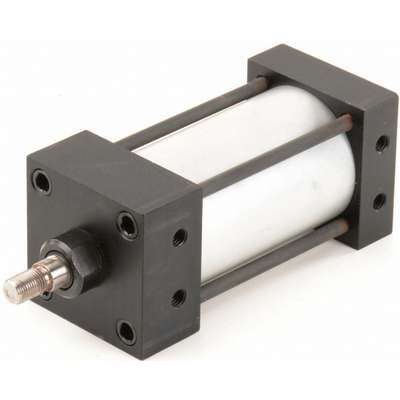

2-1/2" Air Cylinder Bore Dia. with 3" Stroke Aluminum , Side Tapped/Sleeve Nut Mounted Air Cylinder
#913785-7 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
Air Consumption
scfm
Dimension Mm
5/8
Air Cylinder Mount
Side Tapped/Sleeve Nut
Dimension Nt
5/16 in.-18
Air Cylinder Type
NFPA
Dimension P
2.47
Body Material
Aluminum
Dimension Y
1-7/8
Brand
SPEEDAIRE
End Cap Material
Aluminum
Cushion Type
None
Finish
Silver and Black
Cylinder Action
Double Acting
Item
Air Cylinder
Cylinder Ports
1/4 NPT
Maximum Load
1227 lb.
Cylinder Type
NFPA
Maximum Pressure
250 psi
Dimension A
.75 in.
Mfr. Part Number
6X388
Dimension B
1.124 in.
Mount
Side Tapped/Sleeve Nut
Dimension C
0.375 in.
Mounting Style
Side Tapped/Sleeve Nut
Dimension Db
5/16 in.-24
Overall Length
8-1/2 in.
Dimension E
2.5 in.
Package Quantity
1
Dimension Ee
1/4 NPT
Port Size
1/4 in. NPT
Dimension G
1.5 in.
Shipping Weight
4.25 lb.
Dimension J
1.00 in.
Stroke
3 in.
Dimension Kk
1/2 in.-20
Tube Material
Aluminum
Dimension Lb
3-5/8
Type
Double Acting
General
Action Type
Double Acting
Piston Rod Material
Chrome Plated Steel
Air Cylinder Bore Dia.
2 1/2 in
Rod Dia.
0.625 in
Air Cylinder Product Group
Air Cylinder
Rod Thread Length
0.75 in
Bore Dia.
2 1/2 in
Rod Thread Size
1/2"-20
End Caps
Aluminum
Single Acting/Double Acting
Double Acting
Features
Sq. Head, Piston Magnet
Tie Rod Material
Steel
Piston Rod
Chrome Plated Steel
Tie Rods
Steel
Product Description
This NFPA square-head tie rod aluminum cylinder is designed with a replaceable rod gland and fully adjustable cushion to allow a full range of NFPA MS4 interchangeable mounting configurations. 4 internal-threaded sleeve nuts recessed in the head and 4 tapped holes in the cap permit direct mounting. Noncushioned, magnetic piston.
Expertly Selected Product Pairings
$59.05 pkg | $59.05 ea
$32.48 pkg | $32.48 ea
$43.73 pkg | $43.73 ea
$39.07 pkg | $39.07 ea
$9.67 pkg | $9.67 ea
$6.04 pkg | $6.04 ea
$6.99 pkg | $6.99 ea
$25.95 pkg | $25.95 ea
Item Barcode
Air Cylinder,2 1/2 In Bore,3
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 6X388 | Air Cylinder, 2 1/2 In | |
UNSPSC CODES | 27131701 | ||
VMRS (ATA) CODES | 053-006-009 | Air Cylinder, 2 1/2 In |
