INGERSOLL RAND

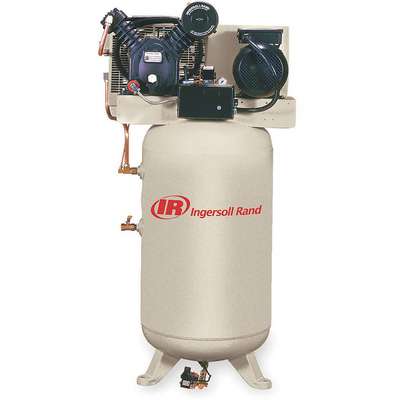

3 Phase - Electrical Vertical Tank Mounted 7.50HP - Air Compressor Stationary Air Compressor, 80 gal
Hover over image to magnify
#913778-8 | Pkg Qty: 1
$5,208.26 pkg | $5,208.26 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Outlet
3/4 in.
Maximum Pressure
175 psi
Air Consumption
scfm
Mfr. Part Number
2475N7.5-P-200/3
Amperage
21.1 A
Number of Stages
2
Amps AC
25.3
Overall Height
70-1/8 in.
Brand
INGERSOLL RAND
Overall Length
38-1/8 in.
Compressor Package Type
Fully Packaged
Overall Width
24 in.
Compressor Type
Tank Mounted
Package Quantity
1
Control
Pressure Switch
Phase
3
Cylinder Material
Cast Iron
Pump Location
Tank Mounted
Duty Cycle
Continuous
Pump RPM
1500
Enclosure
NEMA 1
Pump Type
Cast Iron
Finish
Powder Coated
RPM
3450
Free Air CFM @ 90 PSI
24.3
Shipping Weight
590 lb.
Free Air CFM @ Max Pressure
24
Tank Size
80 gal.
Horsepower
7-1/2
Tank Style
Vertical
Hz
60
Tank Type
Vertical
Input Voltage
200 VAC
Type
Fully Packaged, Splash Lubricated
Item
Electric Air Compressor
Voltage
200
Lubrication Type
Splash Lubricated
Width
24 in.
General
ASME Tank
Yes
Max. Pressure - Air Compressor
175 psi
Air Tank Size
80 gal
Number of Stages - Air Compressor
2
Air Tank Style
Vertical
Off Pressure Switch Setting
175 psi
Compressor Voltage
200V AC
On Pressure Switch Setting
135 psi
Free Air CFM @ 135 PSI
24.2
Outlet Gender
Female
Free Air CFM @ 175 PSI
24
Output Power
7.5 hp
Free Air CFM @ Max. Pressure - Air Compressor
24.0
Phase - Electrical
3
Free Air Flow Rate @ Max Pressure
24 cfm
Pump Location - Air Compressor
Tank Mounted
Free Air Flow Rate @ Maximum Pressure
24 cfm
Pump Oil Capacity
41.6 fl oz
HP
7-1/2
Sound Level Range
Standard (70 dBA or more)
HP - Air Compressor
7.5 hp
Standards
ASME, California Code, CSA
Includes
Air Cooled Aftercooler, Electronic Drain Valve, Low Oil Protection Switch, Motor Starter, Pressure Gauge, Pressure Safety Valve
Style - Air Compressor
Simplex
Input Voltage - Air Compressor
200V AC
Tank Size - Air Compressor
80 gal
Life Expectancy
15,000 hr
Tank Style - Air Compressor
Vertical
Lubrication Type - Air compressor
Splash Lubricated
dBA @ 3 Feet
85.0
Max Operating Pressure
175 psi
Product Description
Compressor includes an air-cooled aftercooler to remove additional moisture, low oil protection switch to prevent pump from running dry, and electronic drain valve.
- Expected pump life: 15,000 hr.
- 100% continuous-duty
- ASME tank with discharge isolation valve
- Must be hardwired
- Required start-up kit sold separately
