SPEEDAIRE

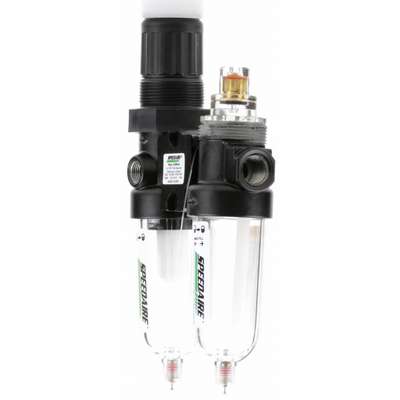

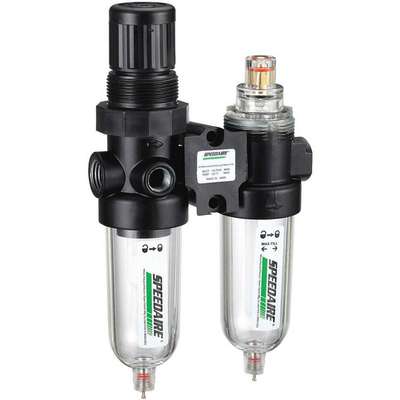

1/4" NPT Filter/Regulator/Lubricator with 5 to 125 psi Adjustment Range
Hover over image to magnify
#913774-3 | Pkg Qty: 1
$104.98 pkg | $104.98 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adjustment
5 to 125 psi
Maximum Temperature (Deg. F)
125
Air Consumption
scfm
Mfr. Part Number
4ZM04
Bowl Material
Polycarbonate
NPT
1/4 in.
Brand
SPEEDAIRE
Number of Pieces
2
Drain Type
Manual
Overall Height
6.54 in.
Filter Rating
5 micron
Overall Width
3.55 in.
Item
Filter/Regulator/Lubricator
Package Quantity
1
Maximum Flow
10 cfm
Pipe Size
1/4 in. NPT
Maximum Flow (CFM)
10 CFM
Shipping Weight
1.05 lb.
Maximum Pressure
150 psi
Type
2 Piece Modular Combination
Maximum Temperature
125 deg. F
Width
3.55 in.
General
Adjustment Location
Top
Gauge Port Size
1/8 in NPT
Adjustment Mechanism
Knob
Lubricator Bowl Capacity
1 oz
Adjustment Mechanism Material
Reinforced Nylon
Lubricator Type
Micro Mist
Adjustment Range - Air Treatment
5 to 125 psi
Lubricator Type Included
Micro-Mist
Air Flow Direction
Left to Right
Max. Flow - Air Treatment
10 cfm
Air Inlet Gender
Female
Max. Flow Range - Air Treatment
0 to 10 cfm
Air Inlet Type
NPT
Max. Incoming Pressure - Air Treatment
150 psi
Air Outlet Gender
Female
Max. Pipe Run - Air Treatment
6 m
Air Outlet Size
1/4 in
Maximum Regulated Pressure
0.85 MPa
Air Outlet Type
NPT
Minimum Operating Pressure
0.05 MPa
Bowl Material - Air Treatment
Polycarbonate
Minimum Regulated Pressure
0.05 MPa
Bowl Size - Air Treatment
1.0 oz
Modular Connection
No Modular Connection
Connection Size - Air Treatment
1/4 in NPT
Pressure Gauge Port Gender
Female
Drain Part Compatibility
1AKG5A
Pressure Gauge Port Size
1/8 in
Filter Bowl Capacity
1 oz
Pressure Gauge Port Type
NPT
Filter Bowl Material
Plastic
Recommended Lubricant
ISO VG 32
Filter Rating - Air Treatment
5 micron
Regulator Type
Relieving
For Fluid Type
Compressed Air
Sight Dome Included
Yes
For Removal Of
Oil, Oil Odor, Oil Vapor, Particles, Water
Sight Gauge Included
Yes
For Substance Type
Air
Size - Air Treatment
Subcompact
Product Description
This 2-pc. unit combines filter/regulator with a MicroMist lubricator. Modular connector allows easy removal and swap out. For filter/regulator, the CFM flow is measured with 90 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop. For lubricator, the CFM is based on 90 psig inlet and 5 psig pressure drop.
