AIROTRONICS

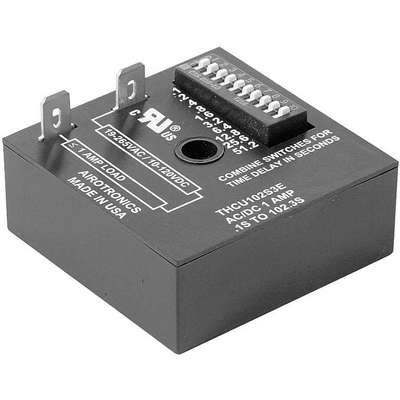

Airotronics Single Function Encapsulated Timing Relay, Function: On Delay, Status Indicator: None, 1A Contact Am

Hover over image to magnify
Time Delay Relay,Dip Switch,1NO
Time Delay Relay,Dip Switch,1NO
Airotronics Single Function Encapsulated Timing Relay, Function: On Delay, Status Indicator: None, 1A Contact Am Video

#913769-4 | Pkg Qty: 1

$27.57 pkg | $27.57 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
1.00 A @ 19 to 265 V
Minimum Time Setting
0.01 sec.
Adjustment Method
Dip Switch
Mounting
Surface
Base Type
Surface
Number of Contacts
1
Body Depth
4-1/2 in.
Number of Functions
1
Body Height
3/4 in.
Number of Pins
2
Body Width
3 in.
Operating Functions
1
Brand
AIROTRONICS
Output
Relay
Coil Volts
19 to 265 VAC/10 to 120 VDC
Overall Height
1.82 in.
Contact Form
SPST-NO
Package Quantity
1
DC Contact Rating
1.00 A @ 10 to 120 V
Pins
2
Function
On Delay
Resistive Contact Amp Rating
1A
Hz
50/60
Shipping Weight
.15 lb.
Input Voltage
19 to 265 VAC/10 to 120 VDC
Socket Code
Surface
Input or Control Voltage
10 to 120 VDC, 19 to 265 VAC
Status Indicator
None
Item
Single Function Encapsulated Timing Relay
Timing Range
0.01 sec. to 102.30 sec.
Maximum Time Setting
102.3 sec.
Type
Dip Switch
Mfr. Part Number
THCU102S3E
Type of Output
Relay
General
AC Contact Rating - Relay
1.00A @ 19 to 265V
Hz - Electrical
50 Hz, 60 Hz
Adjustment Method - Timer
Dip Switch
Max. Time Setting - Timer
17 min 3 sec
Body Depth - Relay
4.5 in
Min. Time Setting - Timer
0.1 sec
Body Height - Relay
0.75 in
Mounting - Relay
Surface
Body Width - Relay
3.0 in
Number of Pins - Relay
2
Contact Form - Relay
SPST-NO
Overall Height - Relay
1.82 in
DC Contact Rating - Relay
1.00A @ 10 to 120V
Standards
CSA, UL508, Ulr
Function - Timing Relay
On Delay
Timer Range
0.01 sec. to 102.30 sec.

Product Description

Solid-state technology provides a long service life, reducing maintenance costs and production loss due to downtime. 1/4" quick-connect.

When power is applied to the coil, the On Delay timing period begins. The contacts do not transfer at this time. At the end of the On Delay period the contacts transfer, either connecting (normally open contacts) or disconnecting (normally closed contacts) the load. The contacts stay in the transferred state until power is removed from the coil. They then return to their original state and the unit is ready for a new cycle.
