FNPT Gate Valve, Inlet to Outlet Length: 1.85", Pipe Size: 3/4", Max. Fluid Temp.: 212°F

Hover over image to magnify

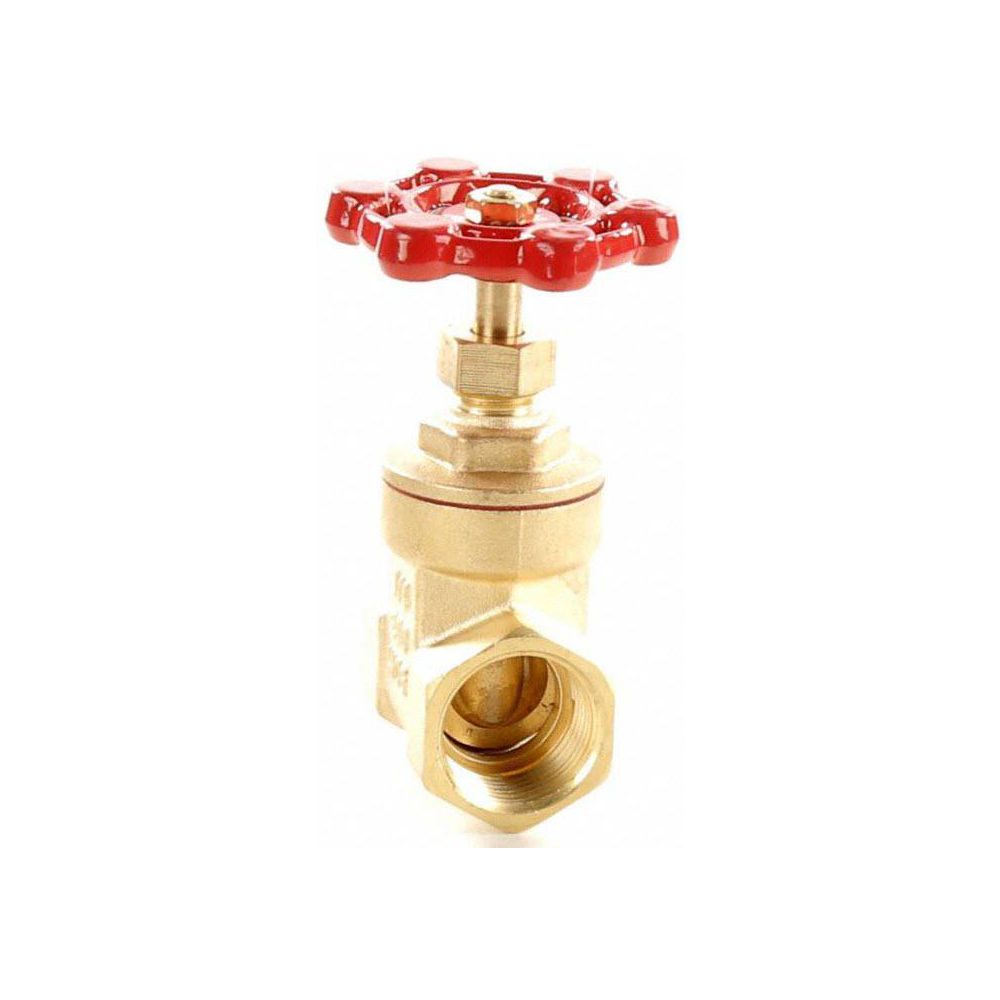

Gate Valve,Brass,3/4 In,Brass
PI_Asset_1363285
PI_Asset_1381673
Gate Valve,Brass,3/4 In,Brass
PI_Asset_1363285
PI_Asset_1381673
Double tap image to magnify
Gate Valve,Brass,3/4 In,Brass
6TWJ9_SS01_R01_C23
6TWJ9_SS01_R01_C10
Gate Valve,Brass,3/4 In,Brass
6TWJ9_SS01_R01_C23
6TWJ9_SS01_R01_C10

#913598-1Pkg Qty: 1

$22.15 pkg | $22.15 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Body Material
Brass
Mfr. Part Number
6TWJ9
Brand
APPROVED SUPPLIER
Package Quantity
1
Connection Type
FNPT
Pipe Size
3/4 in.
Handle Material
Cast Iron
Shipping Weight
.45 lb.
Handle Type
Hand Wheel
Stem Material
Brass
Item
Gate Valve
Stem Type
Non-Rising
General
Bonnet Style
Screw-in
Standards
ANSI B1.20.1, NSF/ANSI 61
Inlet to Outlet Length
1 17/20 in
Top of Handle to Inlet Center
3 19/100 in
Max. Water Pressure - CWP
200 psi
Valve Max. Fluid Temp.
212 Degrees F
Max. Working Steam Pressure - WSP
125 psi

Product Description

This Imperial Supplies Approved main shutoff gate valve must be used fully open or fully closed in water and compressed air applications. The nonrising stem allows use in locations with limited vertical space.

  • Brass disc
  • Full port
