RED HEAD

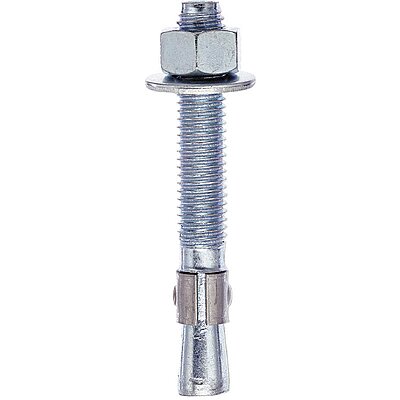

4-1/4" Stainless Steel Expansion Wedge Anchor, 1/2" Anchor Dia., Plain, 25PK
Hover over image to magnify
#913518-3 | Pkg Qty: 25
$466.00 pkg | $18.64 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
ICC Evaluation Service, Inc. # ESR-2251; UL; Factory Mutual; COLA - RR2748; California State Fire Marshall; Caltrans; Meets or Exceeds US Government G.S.A Specification A-A-1923A Type 4 (formerly GSA: FF-S-325 Group II, Type 4, Class 1)
Meets/Exceeds
ICC Evaluation Service, Inc. # ESR-2251; UL; Factory Mutual; COLA - RR2748; California State Fire Marshall; Caltrans; Meets or Exceeds US Government G.S.A Specification A-A-1923A Type 4 (formerly GSA: FF-S-325 Group II, Type 4, Class 1)
Anchor Diameter
1/2 in.
Mfr. Part Number
SWW-1242
Anchor Length
4-1/4 in.
Minimum Embedment
2-1/4 in.
Basic Material
Stainless Steel
Pack Quantity
25
Brand
RED HEAD
Seismic Approved
No
Fastener Finish
Plain
Shipping Weight
6.35 lb.
ICC Approved for Cracked Concrete
No
Thread
Fully Threaded
ICC Approved for Un-Cracked Concrete
Yes
Thread Length
2-3/4 in.
Item
Wedge Anchor
Thread Size
1/2"-13
Material
316 Stainless Steel
Ultimate Shear in 4000 PSI Concrete
4760 lb.
Material Grade/Class
316
Ultimate Tension in 4000 PSI Concrete
5100 lb.
Maximum Work Thickness
1-1/2 in.
General
Ultimate Shear in 4000 PSI Concrete (Lb.)
4,760 lb
Ultimate Tension in 4000 PSI Concrete (Lb.)
5,100 lb
Product Description
These expansion wedge anchors are designed for use in concrete, and for increased loads. They feature stainless steel construction, and are also suitable for continuous low-temperature applications. Nuts and washers are included.
