JET

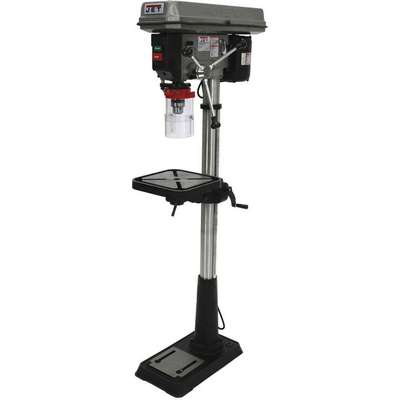

Jet 3/4 Motor HP Floor Drill Press, Belt Drive Type, 15" Swing, 115/230 Voltage
Hover over image to magnify
#913511-6 | Pkg Qty: 1
$1,049.00 pkg | $1,049.00 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
9.0/4.5
Overall Depth
31 in.
Brand
JET
Package Quantity
1
Corded/Cordless
Corded
Phase
Single-Phase
Hz
60
RPM
200 to 3630
Item
Floor Drill Press
Shipping Weight
160 lb.
Mfr. Part Number
354400
Type
Belt Drive
General
Chuck Capacity
5/8 in
Maximum Spindle-to-Table Height
24 in
Chuck Style
Keyed
Minimum Spindle Speed
200 RPM
Column Diameter
2 7/8 in
Nominal Voltage
115/230V AC
Current
9/4.5 A
Quill Diameter
1 7/8 in
Drill Press Application
Drilling
Speed Adjustment
Step Pulley
Drill Press Type
Floor Stand
Speed Range
200 to 3,630 RPM
Drill Spindle Travel
3 in - 4 in
Spindle Speed Range
200 RPM - 3,630 RPM
Drilling Capacity in Cast Iron
5/8 in
Spindle Travel
3 1/8 in
Drilling Capacity in Stainless Steel
1/2 in
Spindle-to-Column Distance
7 1/2 in
Drilling Capacity in Steel
1/2 in
Table Length
11 1/2 in
Drilling Capacity in Wood
5/8 in
Table Load Capacity
44 lb
Guard Included
Yes
Table Slot
Yes
Includes
Chuck with Key
Table Tilt
45 Degrees
Maximum Overall Height
63 in
Table Width
11 1/2 in
Maximum Spindle Speed
3,630 RPM
Tilting Angle
45 Degrees
Maximum Spindle-to-Base Height
48 in
Product Description
Drill Presses
- Medium-Duty
- Feature cast-iron head and adjustable depth stop. For maintenance shops and industrial applications. Part Number: 2LKU8 Precision Micro Drill is for instrument, electronic, jewelry, and research applications. DAKE models feature locking handle hub, quick belt tension release, and CE safety electrical package. JET models feature 45° table tilt and hinged metal belt and pulley cover. Baileigh model features digital RPM readout, auto-reverse tapping feature, safety guard with limit switch, and integrated coolant system.
Item Barcode
Floor Drill Press,15 In,3/4
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3WRP3 | Floor Drill Press,15 In, |
 | UNSPSC CODES | 27112703 | |
 | VMRS (ATA) CODES | 053-006-009 | Floor Drill Press,15 In, |
