DAYTON

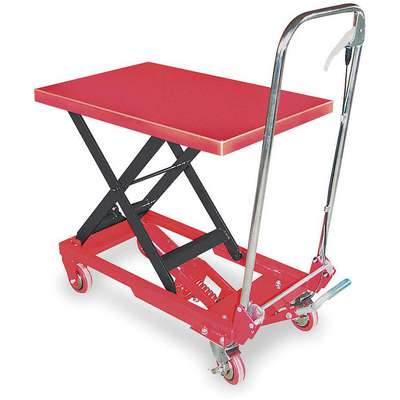

Mobile Manual Lift, Manual Push Scissor Lift Table, 400 lb. Load Capacity, Lifting Height Max. 29-1/

Hover over image to magnify
Scissor Lift Cart,400 Lb.,
Scissor Lift Cart,400 Lb.,

#913510 | Pkg Qty: 1

$864.42 pkg | $864.42 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Load Capacity
400 lb.
Caster Diameter
4 in.
Lowered Height
8-1/4 in.
Caster Material
Polyurethane
Maximum Lifting Height
29-1/4 in.
Caster Type
(2) Rigid, (2) Swivel with Brake
Mfr. Part Number
3KR46
Caster Wheel Diameter
4 in.
Minimum Lifting Height
8-1/4 in.
Caster Wheel Type
(2) Rigid, (2) Swivel with Brake
Mobile/Stationary
Mobile
Frame Material
Steel
Package Quantity
1
Item
Scissor Lift Table
Phase
1
Lift Control
Foot Pump
Platform Length
27-1/2 in.
Lift Mechanism
Hydraulic
Platform Style
Fixed
Lift Mobility
Manual Lift, Manual Push
Platform Width
17-5/8 in.
Lift Table Item
Scissor Lift Table
Powered By
Hydraulic
Lift Table Platform Style
Fixed
Raised Height
29-1/4 in.
Lifting Height Maximum
29-1/4 in.
Shipping Weight
100.8 lb.
Lifting Height Minimum
8-1/4 in.
Warranty
2ACD2
General
Brake Type
Side Pedal Brake
Overall LxWxH
30 1/4 in x 17 1/2 in x 36 7/8 in
Caster Dia.
4 in
Platform LxW
27 1/2 in x 17 5/8 in
Caster Wheel Dia.
4 in
Platform Type
Solid
Elevation per Stroke
1"
Scissor Type
Single
Includes
Hydraulic Foot Pump
Wheel Configuration
(2) Swivel with Brake, (2) Rigid
Lifting Height Max.
29 1/4 in
Wheel/Tread Material
Polyurethane
Lifting Height Min.
8 1/4 in

Product Description

These manual mobile lift tables have a scissor-style support frame that allows their platform to be raised or lowered to a wider range of heights than post-lift tables. The platform sits close to the ground when fully lowered, so heavy items don't need to be lifted far when moving them onto or off of it. The tables' hydraulic lifting mechanism is controlled with a foot pump.
