ENERPAC

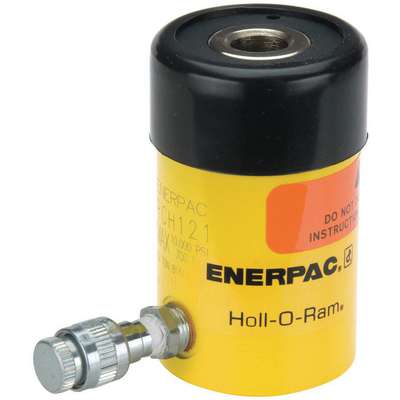

12 tons Single Acting Hollow Steel Hydraulic Cylinder, 1-5/8" Stroke Length

Hover over image to magnify
Cylinder,Steel,12 Ton,1.63 In
Cylinder,Steel,12 Ton,1.63 In

#913499 | Pkg Qty: 1

$1,213.03 pkg | $1,213.03 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
ENERPAC
Pack Quantity
1
Item
General Purpose Hydraulic Ram
Shipping Weight
6.5 lb.
Mfr. Part Number
RCH121H
General
Center Hole Dia.
0.75 in
Nominal Stroke Length
2 in
Collar Thread Size
2-3/4"-16
Oil Capacity Push
4.49 cu in
Effective Push Area
2.76 sq in
Outside Dia.
2.75 in
Extended Height
6.37 in
Plunger Dia.
1.38 in
Includes
Coupler, Reducer
Plunger Thread Size
3/4"-16
Max. Pressure
10,000 psi
Retracted Height
4.75 in
Max. Push Capacity
12 ton
Single Acting/Double Acting
Single Acting

Product Description

General purpose hollow rams attach to a hydraulic pump to lift heavy loads with minimal effort. The hollow piston accepts a threaded rod to allow the ram to be used for push and pull applications. They have a maximum working pressure of 10,000 psi.

Hollow hydraulic rams have a hollow ram, plunger, and piston rod that can be used with a threaded rod for pushing, pulling, tensioning, and testing applications. The rod is threaded through the piston and threaded into or through the workpiece to pull it out or push it into place. Hydraulic rams attach to a hydraulic pump to apply large amounts of force to support or move workpieces.
