POWER FIRST

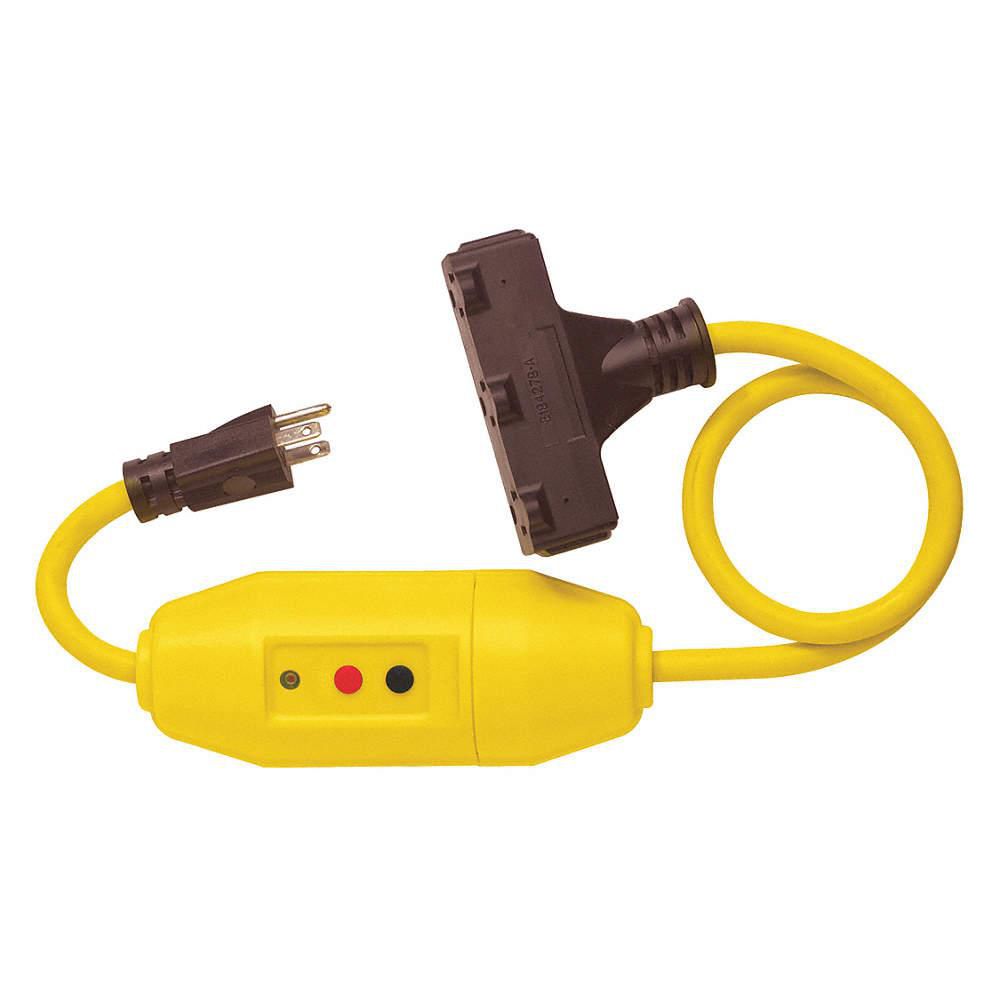

Power First Line Cord GFCI, 120VAC Voltage Rating, NEMA Plug Configuration: 5-15P, Number of Poles: 2

Hover over image to magnify
Cord Set, In-Line GFCI,15 Amps
PI_Asset_1364772
Cord Set, In-Line GFCI,15 Amps
PI_Asset_1364772

#913488-4 | Pkg Qty: 1

$61.91 pkg | $61.91 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage
15 A
Number of Poles
2
Brand
POWER FIRST
Number of Wires
3
Color Family
Yellow
Outlet Configuration
3 Outlets
Cord Length
2 ft.
Package Quantity
1
Enclosure Rating
Outdoor
Plug Configuration
Straight, No Swivel
Hz
50/60
Plug Style
Straight
Item
Line Cord GFCI
Range of Lengths
9 in. to 4 ft.
Mfr. Part Number
2XYR8
Reset Type
Manual
NEC Cord Designation
SJTW
Self-Testing
No
NEMA Plug Configuration
5-15P
Shipping Weight
1.31 lb.
NEMA Receptacle
(3) 5-15R
Type
Tri-Cord
NEMA Receptacle Configuration
(3) 5-15R
Voltage
120 VAC
Number of Conductors
3
Voltage Rating
120 VAC
Number of Outlets
3
Wire Size
12 AWG
General
Outlet Count
3 Outlets
Standards
UL 943, CSA
Plug Configuration - Ext. Cords and Power Strips
Straight, No Swivel
Trade Designation
SJTW
Receptacle Configuration
NEMA 5-15R

Product Description

Inline portable GFCI cords with manual reset are electrical devices used between a power source and an electrical device to help prevent electrical shock from water and other hazards. They require the user to reset the GFCI after a power outage by pushing the reset button to restore power to the connected equipment. They are typically used in industrial or construction applications, such as with power tools, where a sudden resumption in power could be dangerous if equipment starts back up unexpectedly. They have an outlet plug at one end and one or more receptacles at the other end that devices plug into. They can also be used with extension cords, in which case the GFCI plugs into the wall, the extension cord plugs into the GFCI, and the device plugs into the extension cord.

General purpose portable ground fault circuit interrupter (GFCI) bodies and cords are electrical devices used with power cords that help protect users from ground faults. They have an integrated circuit breaker that turns off the power when a current overload is detected, helping protect users from electrical burns, shock, or electrocution. They are commonly used in temporary power applications to provide protection where electrical circuits may come in contact with water, such as in garages or outdoors, and a standard GFCI receptacle is not available. Plug-in GFCIs plug directly into a wall outlet and have one or more receptacles that devices plug into. Inline GFCIs are lengths of cord with an outlet plug at one end and one more receptacles at the other end that devices plug into.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9134884
Cord Set, In-Line GFCI,15 Amps
 NameItemDescription
Grainger DropshipGrainger Dropship2XYR8Cord Set, In- line GFCI,15
UNSPSC CODESUNSPSC CODES39121406
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002Cord Set, In- line GFCI,15
