TSURUMI

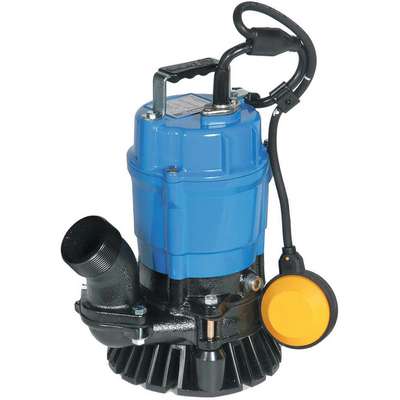

1/2 HP Construction Site/Residential Dewatering Pump with 120VAC Voltage and Discharge NPT 2", 20 f

Hover over image to magnify
Automatic Trash Pump,1/2 Hp,
Automatic Trash Pump,1/2 Hp,

#913445-2 | Pkg Qty: 1

$652.68 pkg | $652.68 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
Etl/Cetl
Item
Construction Site/Residential Dewatering Pump
Amps
5.4 AC
Length
15-1/8 in.
Base Material
PVC
Maximum Diameter Solids
1/4 in.
Bearing Type
Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
Maximum Head
39 ft.
Brand
TSURUMI
Maximum Liquid Temperature
104°F
Cord Length
20 ft.
Mfr. Part Number
HSZ2.4S-62 (AUTO, 115V)
Cord Size
16/3
Mfr. Warranty Length
2 yr.
Cord Type
3-Conductor STOW, Resists Water and Oil
Minimum Sump Pit Diameter
21 in.
Diameter
13-1/2 in.
Motor Housing
Die Cast Aluminum
Discharge NPT
2 in.
Motor RPM
3320
Duty
Continuous
Motor Type
PSC
Function
Dewatering
Package Quantity
1
GPM @ 1 Ft. of Head
53
Phase
1
GPM of Water @ 10 Ft. of Head
46
Pump HP
1/2
GPM of Water @ 15 Ft. of Head
40
Pump RPM
3320
GPM of Water @ 20 Ft. of Head
35
Pump Type
Construction Site and Residential Dewatering
GPM of Water @ 25 Ft. of Head
28
RPM
3320
GPM of Water @ 30 Ft. of Head
20
Shaft Material
Stainless Steel
GPM of Water @ 35 Ft. of Head
10
Shaft Seal
Silicone Carbide
GPM of Water @ 5 Ft. of Head
53
Shaft Seal Material
Silicone Carbide
Handle
Top Carrying
Shipping Weight
29.25 lb.
Height
15-1/8 in.
Suction
Screened Bottom
Horsepower
1/2
Switch Type
Float
Housing
Die Cast Aluminum
Thermal Protection
Automatic
Housing Material
Die Cast Aluminum
Top Material
Die Cast Aluminum
Hz
60
Type
Construction Site and Residential Dewatering
Impeller Material
Urethane Rubber
Voltage
120 VAC
Input Phase AC
1
Warranty
2 Years
Insulation Class
E
Width
13-1/2 in.
General
Application
Nonflammable Liquids
For Use With
Nonflammable Liquids
Body Dia.
13 1/2 in
Max. Liquid Temp.
104 Degrees F
Discharge Dia.
2 in
Min. Sump Pit Dia.
21 in
Discharge Gender
Male
Minimum Water Depth
21 in
Discharge Standard
NPT
Nominal Voltage
110V AC
Features
Dewatering
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
46 gpm
Rated Voltage
110V AC
Flow Rate @ 15 Ft. of Head
40 gpm
Shaft Seal Material - Pumps
Silicone Carbide
Flow Rate @ 20 Ft. of Head
35 gpm
Switch Actuation
Tether Float
Flow Rate @ 5 Ft. of Head
53 gpm
Width at Widest Point
13 1/2 in

Product Description

These 110 to 120V plug-in utility and dewatering pumps transfer moderate amounts of water on jobsites and accept an inlet hose so they don't have to be placed in the water that needs to be drained. Some pumps come with a switch for automatic on/off operation, while other models allow installation of an automatic switch. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
