TSURUMI

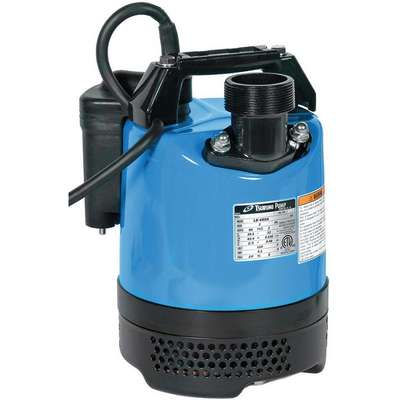

2/3 HP Automatic Submersible Dewatering Pump with 120VAC Voltage and Discharge NPT 2", 32 ft. Cord

Hover over image to magnify
Automatic Dewatering Pump,2/3
Automatic Dewatering Pump,2/3

#913445-1 | Pkg Qty: 1

$968.52 pkg | $968.52 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
Etl/Cetl
Item
Automatic Submersible Dewatering Pump
Amps
6.1 A
Length
11-1/4 in.
Base Material
Steel
Maximum Diameter Solids
1/4 in.
Bearing Type
Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
Maximum Head
39 ft.
Brand
TSURUMI
Maximum Liquid Temperature
104°F
Cord Length
32 ft.
Mfr. Part Number
LB-480A-62 (AUTO, 115V)
Cord Size
16/3
Mfr. Warranty Length
2 yr.
Cord Type
3-Conductor STOW, Resists Water and Oil
Minimum Sump Pit Diameter
12 in.
Diameter
8-3/4 in.
Motor Housing
Die Cast Aluminum
Discharge NPT
2 in.
Motor RPM
3255
Duty
Continuous
Motor Type
PSC
Function
Dewatering
Package Quantity
1
GPM @ 1 Ft. of Head
62
Phase
1
GPM of Water @ 10 Ft. of Head
57
Pump HP
2/3
GPM of Water @ 15 Ft. of Head
50
Pump RPM
3255
GPM of Water @ 20 Ft. of Head
44
Pump Type
Construction Site and Residential Dewatering
GPM of Water @ 25 Ft. of Head
36
RPM
3255
GPM of Water @ 30 Ft. of Head
23
Shaft Material
Stainless Steel
GPM of Water @ 35 Ft. of Head
11
Shaft Seal
Silicone Carbide
GPM of Water @ 5 Ft. of Head
62
Shaft Seal Material
Silicone Carbide
Handle
Top Carrying
Shipping Weight
29.38 lb.
Height
11-1/4 in.
Suction
Screened Bottom
Horsepower
2/3
Switch Type
Electronic
Housing
Die Cast Aluminum
Thermal Protection
Automatic
Housing Material
Die Cast Aluminum
Top Material
Die Cast Aluminum
Hz
60
Type
Construction Site and Residential Dewatering
Impeller Material
Urethane Rubber
Voltage
120 VAC
Input Phase AC
1
Warranty
2 Years
Insulation Class
E
Width
8-3/4 in.
General
Application
Nonflammable Liquids
For Use With
Nonflammable Liquids
Body Dia.
8 3/4 in
Max. Liquid Temp.
104 Degrees F
Discharge Dia.
2 in
Min. Sump Pit Dia.
12 in
Discharge Gender
Male
Minimum Water Depth
12 in
Discharge Standard
NPT
Nominal Voltage
110V AC
Features
Dewatering
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
57 gpm
Rated Voltage
110V AC
Flow Rate @ 15 Ft. of Head
50 gpm
Shaft Seal Material - Pumps
Silicone Carbide
Flow Rate @ 20 Ft. of Head
44 gpm
Switch Actuation
Sensor
Flow Rate @ 5 Ft. of Head
62 gpm
Width at Widest Point
8 3/4 in

Product Description

These 110 to 120V plug-in utility and dewatering pumps transfer moderate amounts of water on jobsites and accept an inlet hose so they don't have to be placed in the water that needs to be drained. Some pumps come with a switch for automatic on/off operation, while other models allow installation of an automatic switch. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
