PARKER

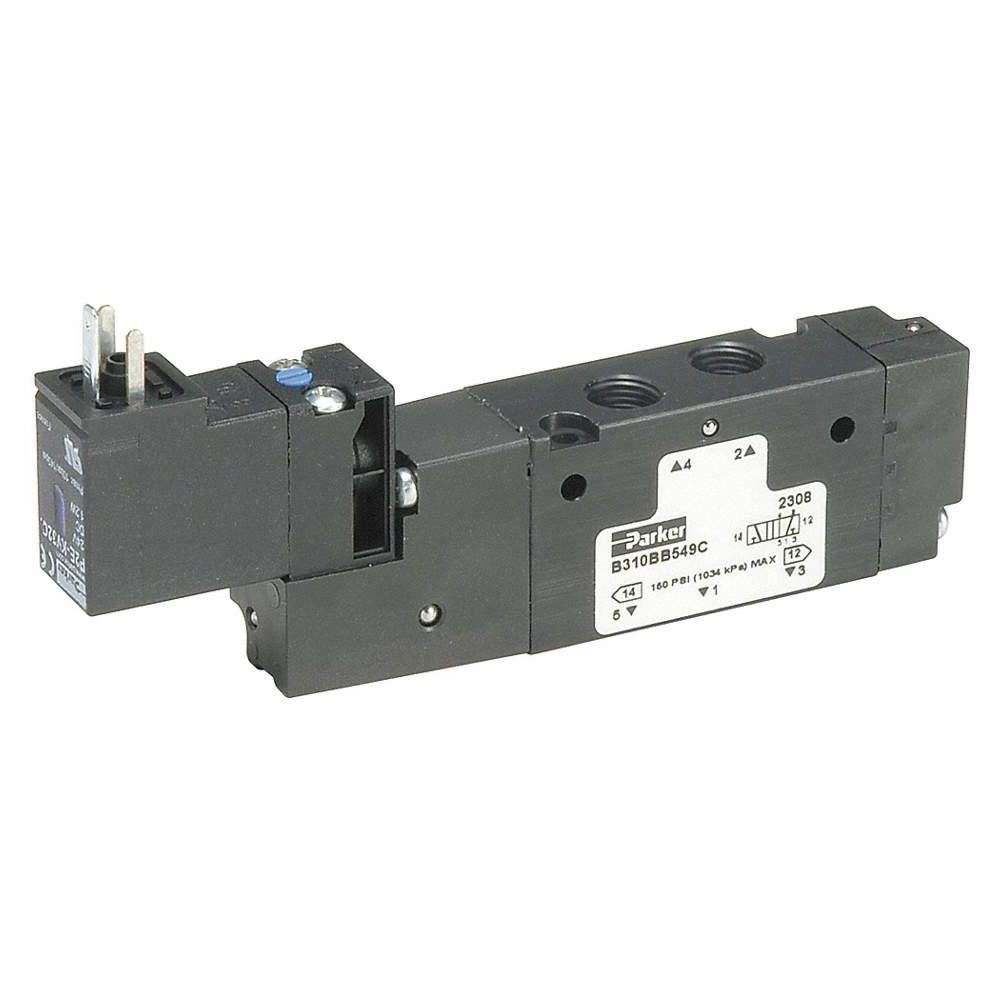

Solenoid Air Control Valve: 24V DC, Solenoid / Spring, 1/8 in Pipe Size, 20 to 145 psi
Hover over image to magnify
#913434-7 | Pkg Qty: 1
$216.90 pkg | $216.90 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Actuator/Return
Solenoid/Spring
NPT Port
1/8
Air Consumption
scfm
Operational Pressure Range
20 to 145 PSI
Ambient Temperature
5 to 120 deg. F
Overall Height
1-1/2 in.
Body Style
Body Ported
Overall Length
4-1/2 in.
Brand
PARKER
Overall Width
1 in.
Coefficient of Volume
3/4
Package Quantity
1
Coil
15mm 3-Pin Male DIN
Pipe Size
1/8 in.
Connection
FNPT
Requires
DIN Coil Connector
Current Rating
49 mA (Holding)
Series
B
Cv
3/4
Shipping Weight
.3 lb.
Design
Ported Inline Body
Type
4 Way, 2 Position
Electrical Connections
15mm, 3-Pin Male DIN
Vacuum
With External Pilot
Item
Solenoid Air Control Valve
Valve Actuator/Return
Solenoid / Spring
Maximum CFM
3/4
Valve Type
4-Way, 2-Position
Maximum Operating PSI
145
Valve Vacuum Range
0 to 28 in. Hg
Meets/Exceeds
IP65
Valve Ways/Positions
4-Way/2-Position
Mfr. Part Number
B310BB549C
Voltage
24 VDC
NEMA Classification
NEMA 4
Width
0.71 in.
General
Actuator / Return
Solenoid/Spring
Pneumatic Valves Product Group
Solenoid Air Control Valve
Air Valve Type
4-Way, 2-Position
Standards
CE, CSA, cUS
Max. CFM - Valves
0.75 cfm
Valve Actuator / Return
Solenoid / Spring
Override
Non-Locking Flush
Valve Ways and Positions
4-Way/2-Position
Pilot Port Size
1/8 in NPT
Product Description
This single solenoid has a low-friction breakaway for fast response time. Its low wear assures long service life.
