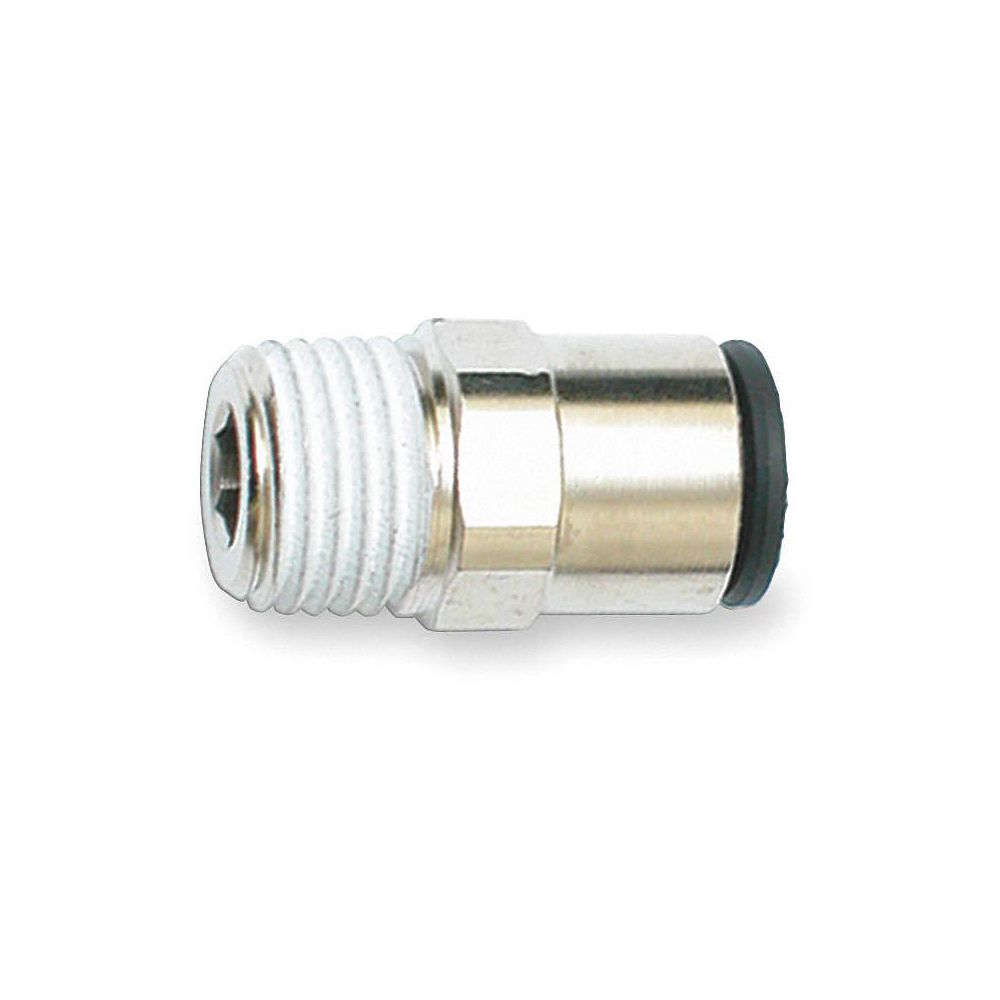

Male Connector: Nylon, Push-to-Connect x MBSPT, For 5/16 in Tube OD, 1/4 in Pipe Size, Silver, 10 PK

Name: Male Connector: Nylon, Push-to-Connect x MBSPT, For 5/16 in Tube OD, 1/4 in Pipe Size, Silver, 10 PK
Brand: LEGRIS
SKU: 9134279
Price: 104.4 USD
Availability: InStock

Hover over image to magnify

Male Connector: Nylon, Push-to-Connect x MBSPT, For 5/16 in Tube OD, 1/4 in Pipe Size, Silver, 10 PK Video

Double tap image to magnify

#913427-9Pkg Qty: 10

$104.40 pkg | $10.44 ea

In Stock

Shipping to 43085

Expected to arrive Tue. Mar 25.

Technical Specifications

Key Specifications

Basic Material

Plastic/Metal Combination

Material of Construction

Glass Filled Nylon And Nickel Plated Brass

Body Material

Glass Filled Nylon and Nickel Plated Brass with a Black Polypropylene Button

Maximum Pressure

290 psi

Brand

LEGRIS

Mfr. Part Number

3175 08 13

Color Family

Silver

Package Quantity

Connection Type

Tube x Male BSPT

Pipe Size

1/4 in.

Hex Size

14 mm

Pneumatics Fittings Sub-Category

Adapters

Item

Male Connector

Shipping Weight

.33 lb.

General

Compatible Tube Hardness

95 Shore A

For Tube Outside Diameter

5/16 in

End Connection Type

Push-to-Connect, Threaded

Includes Pre-Applied Thread Sealant

Yes

Fitting Side A Connection Type

Push-to-Connect

Metal Detectable

Yes

Fitting Side A Tube Outer Diameter

5/16 in

Resistance Properties

Chemical-Resistant, Corrosion-Resistant

Fitting Side B Connection Type

MBSPT

Specific Fitting Shape

Straight Adapter

For Tube OD

5/16 in

Product Description

Glass-Filled Nylon Push-To-Connect Fittings

Max. operating pressure: 290 psi Temp. range: -4° to 175°F Pkg. qty.: 10, unless otherwise noted Stainless steel gripping ring provides a secure, leak-free connection without tools; disconnects easily with the plastic release button. All threaded elbows, tees, and Y's swivel around the threaded, nickel-plated base for easy installation. Fitting bodies are a composite material—nylon and nickel-plated brass. Thread sealant is preapplied to all tapered threads. Buna N elastomer seals. Can be used with all pneumatic machines, as well as for food-processing, packaging equipment, textile machinery, robotics, and semiconductor applications. Use with semirigid nylon, flexible polyurethane, polyethylene, and PTFE tubing.
