DEWALT

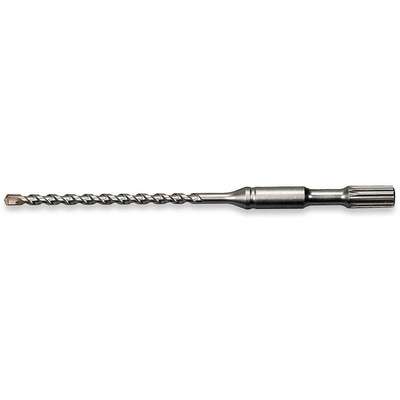

Dewalt Spline Rotary Hammer Drill Bit, Drill Bit Size 3/8 in, Overall Length 13 in, Max Drilling Depth 8 in, Carbide Tipped

Hover over image to magnify
Hammer Drill Bit,Spline,3/8 In,
Hammer Drill Bit,Spline,3/8 In,
Double tap image to magnify
Hammer Drill Bit,Spline,3/8 In,
Hammer Drill Bit,Spline,3/8 In,

#913409-3Pkg Qty: 1

$42.17 pkg | $42.17 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 14.
|

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<p>The spline shank on these drill bits prevents them from slipping in high-torque drilling applications when creating holes in concrete and masonry. The bits install into rotary hammer drills with spline-drive chucks, which have 12 grooves that mesh with matching grooves on the bits' shanks to hold them in place in the chucks.</p>

The spline shank on these drill bits prevents them from slipping in high-torque drilling applications when creating holes in concrete and masonry. The bits install into rotary hammer drills with spline-drive chucks, which have 12 grooves that mesh with matching grooves on the bits' shanks to hold them in place in the chucks.

Pkg Qty 1 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Brand
DEWALT
Item
Rotary Hammer Drill
Decimal Equivalent
3/8
Maximum Drilling Depth
8 in.
Drill Bit Finish
Bright (Uncoated)
Mfr. Part Number
DW5701
Drill Bit Material
Carbide Tipped
Overall Length
13 in.
Drill Bit Size
3/8 in.
Package Quantity
1
Drill Size
3/8 in.
Shank Diameter
3/4 in.
Drilling Length
8 in.
Shank Shape
Spline
For Tool Type
Rotary Hammer
Shank Size
3/4 in.
Impact Rated
No
Shipping Weight
.75 lb.
General
Application
For Concrete And Masonry Drilling
Measurement System
Fractional Inch
Drill Bit Grouping
Set
Number of Cutter Heads
2
Finish - Machining
Bright (Uncoated)
Percussion Rated
Yes
For Use With
Rotary Hammer
Shank Type - Machining
Spline
Material - Machining
Carbide Tipped

Product Description

The spline shank on these drill bits prevents them from slipping in high-torque drilling applications when creating holes in concrete and masonry. The bits install into rotary hammer drills with spline-drive chucks, which have 12 grooves that mesh with matching grooves on the bits' shanks to hold them in place in the chucks.
