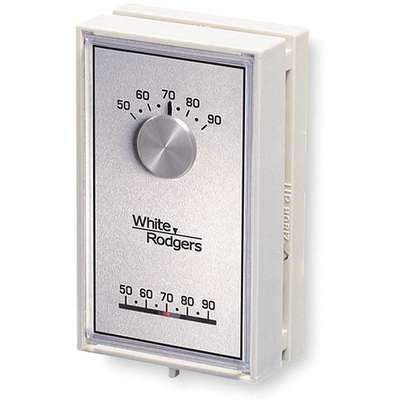

Emerson Low Voltage Thermostat: Electric Forced Air Furnaces/Gas Forced Air Furnaces, Analog, R/W
Hover over image to magnify
#913387-7 | Pkg Qty: 1
$46.60 pkg | $46.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
EMERSON
Mfr. Part Number
1E30N-910
Color Family
White
Mounting Position
Vertical
Depth
1-1/2 in.
Package Quantity
1
Display Type
Analog
Shipping Weight
.33 lb.
Height
4-1/2 in.
Voltage
24 VAC
Item
Low Voltage Thermostat
Width
2-3/4 in.
General
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces
Millivolt Compatible
Yes
Contact Type
Snap Action
Minimum Control Temperature
50 Degrees F
Differential Cool
1.5 Degrees F
Mounting Direction/Shape
Vertical
Differential Heat
1 Degrees F
Number of Heating Stages - Conventional System
1
Differential Type
Adjustable
Operating Humidity Range
0% to 90%
Electrical Connection Type
Hardwired
System Settings
On
Fan Settings
No Fan Setting
System/Fan Settings
On/No Fan Setting
Features
Mercury Free
Temperature Control Range
50 Degrees to 90 Degrees F
For Use With
Millivolt
Temperature Differential
1 Degrees F Heating, 1.5 Degrees F Cooling
Includes
Heat Only Back Plate
Temperature Readout
Yes
Key Features
Vibration Resistant
Temperature Scale
Fahrenheit
Maximum Control Temperature
90 Degrees F
Terminal Designations
R, W
Maximum Operating Humidity
0.9
Thermostat Type
Low Voltage
Mercury Free
Yes
Product Description
These thermostats use simple analog controls to set the temperature of a space. Users can turn a dial or move a slider to the desired temperature. These mechanical thermostats are often used in residential and commercial applications. They're nonprogrammable, so the temperature setting stays the same until it's readjusted.
Expertly Selected Product Pairings
Documents
Item Barcode
Low V Thermostat,H Only,Hg
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2KFX9 | Low V Thermostat,H |
 | UNSPSC CODES | 41112209 | |
 | VMRS (ATA) CODES | 053-006-017 | Low V Thermostat,H |
