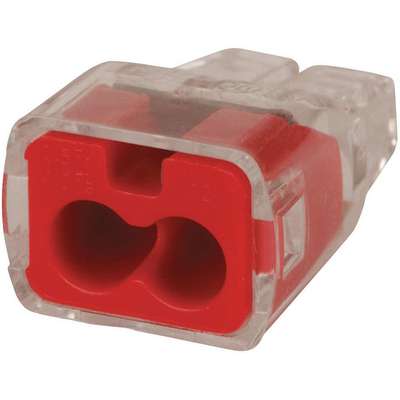

Ideal Push-In Connector, 2 Port, Red, 18 to 12 AWG Stranded, 20 to 12 AWG Solid Wire Range
Hover over image to magnify
#913364-1 | Pkg Qty: 100
$19.20 pkg | $0.19 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
IDEAL
Maximum Wire Size
12 Solid, 12 Stranded (?19 Strand), 18 Stranded (7 strand); 14 Tin-Bond Stranded (?19 Strand) AWG
Color Family
Red
Mfr. Part Number
30-1032
Connector Type
2 Port
Minimum Wire Size
20 Solid, 16 Stranded (?19 Strand), 18 Stranded (7 strand); 18 Tin-Bond Stranded (?19 Strand) AWG
Description/Special Features
Polycarbonate Housing with Ergonomic Grip
Package Quantity
100
Height
0.38 in.
Shipping Weight
.44 lb.
Item
Push-In Connector
Standards
CSA Certified
Length
0.78 in.
Type
Push-In
Maximum Voltage
600 V
Wire Range
20 to 12 AWG Solid, 18 to 12 AWG Stranded
General
Compatible with Product Type
Branch Circuit Wiring, Commercial Lights, Lighting Retrofit, Pre-Fab Wiring Systems, Residential Lights
For Minimum Wire Size - Stranded
18 AWG
Contact Finish
Tin
For Wire Size
12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG
Current
20 A
RoHS Compliant
Yes
For Conductor Material
Copper, Tin-Plated Copper
Special Features
Polycarbonate Housing with Ergonomic Grip
For Maximum Wire Size - Solid
12 AWG
Strip Length
3/8 in
For Maximum Wire Size - Stranded
12 AWG
UL 94 Flammability Rating
V-2
For Minimum Wire Size - Solid
20 AWG
Wire Size Range
20 AWG – 12 AWG
Product Description
Compact size and low-insertion force makes installation quick and easy, while the no-twist connection reduces repetitive motion fatigue. Connectors have a clear shell for visual verification of connection and accept solid or stranded wire.
Expertly Selected Product Pairings
Item Barcode
Push In Connector,2 Port,Red,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5EKL2 | Push In Connector,2 |
 | UNSPSC CODES | 39121409 | |
 | VMRS (ATA) CODES | 053-008-004 | Push In Connector,2 |
