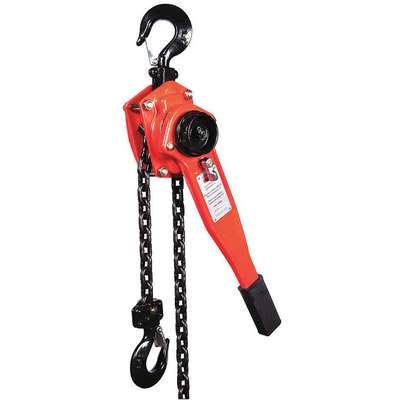

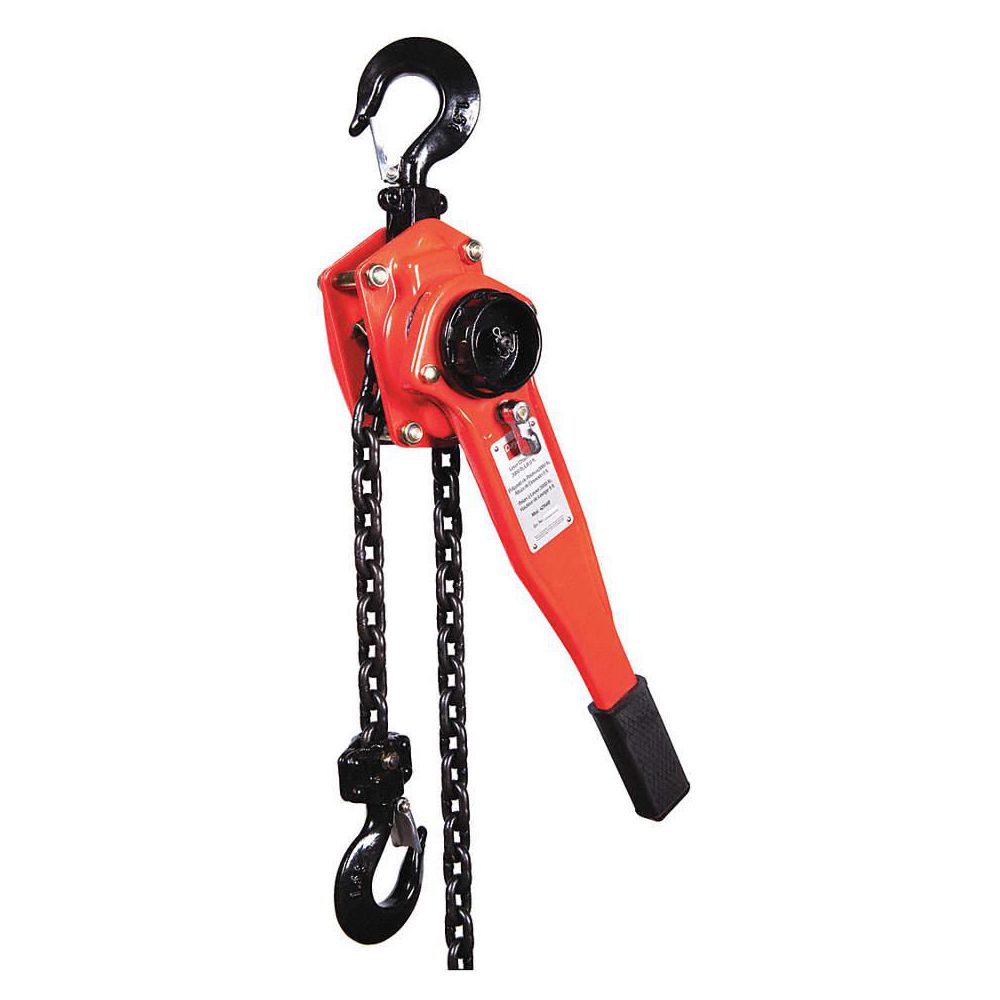

Dayton Lever Chain Hoist, 3000 lb. Load Capacity, 5 ft. Hoist Lift, 1-7/64" Hook Opening

Name: Dayton Lever Chain Hoist, 3000 lb. Load Capacity, 5 ft. Hoist Lift, 1-7/64" Hook Opening
Brand: DAYTON
SKU: 9133587
Price: 462.08 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#913358-7Pkg Qty: 1

$462.08 pkg | $462.08 ea

In Stock

Shipping to 43085

Expected to arrive Fri. Mar 28.

Technical Specifications

Key Specifications

Brake

Weston Style, Double Disc Brake

Lever Length

16-17/32 in.

Brand

DAYTON

Load Capacity

3000 lb.

Chain

Alloy Steel - G80

Mfr. Part Number

4ZX46

Chain Length

5-55/64 ft.

Mfr. Warranty Length

1 yr.

Finish

Housing, Lever, Handwheel, Hooks, Side Plates: Powder Coating; Chain Guides: Zinc Plated

Minimum Between Hooks

15-3/4 in.

Hoist Lift

5 ft.

Package Quantity

Hoist Mount

Hook Mounted - No Trolley

Pull to Lift Rated Load

49 lb.

Hoist Overload Protection

Reeving

Hook Opening

1-7/64 in.

Shipping Weight

30.4 lb.

Item

Lever Chain Hoist

General

Application

Lifting

Load Capacity (Metric T)

1-1/2

Hook Throat Opening

1-1/4"

Min. Between Hooks

15 3/4 in

Includes

Safety Latch Hooks

Standards

ANSI/ASME B30.21, EN13157

Product Description

Lever-Operated 3/4- to 6-Ton Chain Pullers with Weston-Type Brake

Dual-stage reduction gearing Hardened alloy steel load chain Load-tested
Weston-type brake provides positive load control. Free-wheeling chain speeds load attachment. Enclosed chain guide rollers and chain stripper smooth chain feed. Forged upper and lower hooks with latches. All-steel frame, gear case, and cover.
Meet ANSI/ASME B30.21 standards.
