SPEEDAIRE

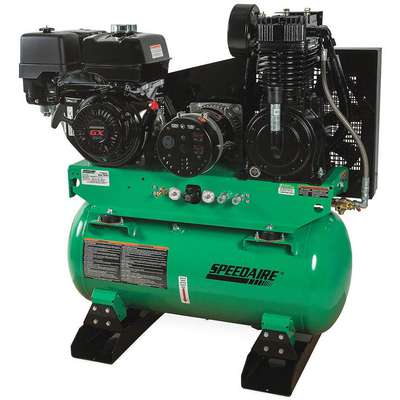

Stationary Air Compressor/Generator: 2 Stage, 13 hp Engine, Honda, 15.7 cfm, Horizontal

Hover over image to magnify
Compressor/Generator,13HP,
Compressor/Generator,13HP,

#913248-8 | Pkg Qty: 1

$3,934.77 pkg | $3,934.77 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
(F)NPT Outlet
3/8 in.
Overall Height
45 in.
Air Consumption
scfm
Overall Length
40 in.
Brand
SPEEDAIRE
Package Quantity
1
Engine Brand
Honda
Pump RPM
864
Frame
Stationary
Pump Type
Two Stage Oil Lubricated
Free Air CFM @ 90 PSI
17
RPM
3600
Free Air CFM @ Max Pressure
15.7
Shipping Weight
565 lb.
Horsepower
13
Tank Size
30 gal.
Hz
60
Tank Style
Horizontal
Item
Stationary Air Compressor/Generator
Tank Type
Horizontal
Maximum Pressure
175 psi
Type
Stationary
Mfr. Part Number
AG2-SH13-30G
Voltage
120
Number of Outlets
3
Width
24-1/2 in.
Number of Stages
2
General
ASME Tank
Yes
Includes
(2) Gauges, Regulator
Air Compressor Oil Capacity
24.7 oz
Low Oil Shut Down
Yes
Air Tank Size
30 gal
Low Oil Shutdown
Yes
Air Tank Style
Horizontal
Lubrication Required
Yes
Amps @ 120/240V
33.3/16.7
Lubrication Type - Air compressor
Oil Lubricated
Compressor Oil Capacity
24.7 oz
Max. Pressure - Air Compressor
175 psi
Compressor Oil Stock No.
4ZF21
Max. Watts @ 120V
4,000 W
Engine HP - Air Compressor
13.0 hp
Mobility
Stationary
Engine Oil Capacity
37 oz
Number of Stages - Air Compressor
2
Engine Oil Stock Number
1UBX8
Operating Frequency (Hz)
60
Engine Output Current
33.3/16.7 A
Outlet Connection Type
NPT
Engine Output Power
13 hp
Outlet Gender
Female
Engine Start Type
Recoil
Pump Oil Capacity
24.7 oz
Engine Starter Type
Recoil
Pump Type - Air Compressor
Piston
Engine Starter Type - Air Compressor
Recoil
Rated Watts
2300/3500
Free Air CFM @ 90 PSI - Air Compressor
17.0
Rated Watts - Air Compressor, Generator
2300/3500
Free Air CFM @ Max. Pressure
15.7
Run Time @ 1/2 Load
5.3 hr
Free Air CFM @ Max. Pressure - Air Compressor
15.7
Run Time @ Full Load
3.8 hr
Free Air Flow Rate @ Maximum Pressure
15.7 cfm
Run Time @ Full Load (Hr./Tank)
3.8
Fuel Tank
1.7 Gal
Sleeves
Cast Iron
Fuel Tank Capacity - Air Compressor
1.7 gal
Sound Level - Air Compressor
80.4 dB
Fuel Type - Engine
Gasoline
Sound Level Range
Standard (70 dBA or more)
Full Power Switch
On/Off
Sound Level dB
80.4
Full-Load Run Time
3.8 hr
Tank Size - Air Compressor
30 gal
Guard Type
Steel
Tank Style - Air Compressor
Horizontal
HP
13.0
Wattage
4,000 W

Product Description

Air compressor/generator from Speedaire® combines a 2-stage air compressor with 120V generator rated at 3500W with compressor off-load. Unit features an On/Off full power switch. This gas engine-powered model has a generator that includes one 120V, 15A duplex receptacle and one 230V, 20A receptacle. Model uses Compressor Oil No. 4ZF21 and Engine Oil No. 1UBX8, both sold separately.
