DAYTON

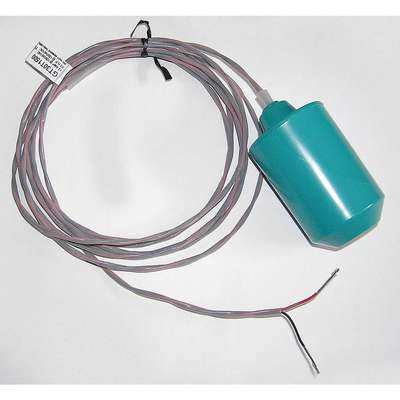

Float Switch Actuation Tether Float, Electrical Connection Wire Leads, Cord Length 15 ft.
Hover over image to magnify
#913135 | Pkg Qty: 1
$81.12 pkg | $81.12 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
13A
Maximum Pressure
15 psi
Body Material
ABS
Maximum Temperature (Deg. C)
105
Brand
DAYTON
Maximum Temperature (Deg. F)
221
Connection
Stripped
Maximum Voltage
240 V
Electrical Connection
Wire Leads
Maximum Wattage
3600
Float Diameter
2-11/16
Mfr. Part Number
10A173
Float Length
4-5/8
Package Quantity
1
Float Material
ABS
Pumping Range Minimum/Maximum
7 to 28
Float Switch Contact Form
Normally Open
Shipping Weight
1.1 lb.
Float Switch Cord Length
15 ft.
Tether Length Minimum-Maximum
3 in. to 18 in.
Float Switch Material
ABS
Tether/Solid State
Tether
Float Switch Off Point
45° Below Horizontal
Turns On At
45 Deg Above
Float Switch Type
Tether
Type
Tether, High Temperature
HP @ 1 Phase - 115 V
1/2
VA Rating
3600
HP @ 1 Phase - 230 V
1/2
Voltage
115/230 VAC
Item
Float Switch, Mechanical
Wire Gauge
16 AWG
Maximum Amps Running
13
Wire Lead
16-2 TYPE FEP PTFE Jacket Cable
Maximum Liquid Temperature
221°F
General
Contact Default
Normally Open
Nominal Voltage
110V AC, 220V AC
Control Range
Adjustable
Rated Voltage
115/230V AC
Maximum Tether Length
18 in
Switch Actuation
Mechanically Activated
Minimum Tether Length
3 in
Product Description
These tether float switches are activated by a float that is attached to the pump by a flexible tether that can be adjusted so the pump starts and stops automatically at preset levels. They require more space to operate compared to vertical float switches since the flexible tether moves in an arc as the water level rises and falls in the sump basin.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Float Switch,Mechanical,High
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 10A173 | Float Switch, Mechanical, |
 | UNSPSC CODES | 39122219 | |
 | VMRS (ATA) CODES | 053-006-009 | Float Switch, Mechanical, |
