SPEEDAIRE

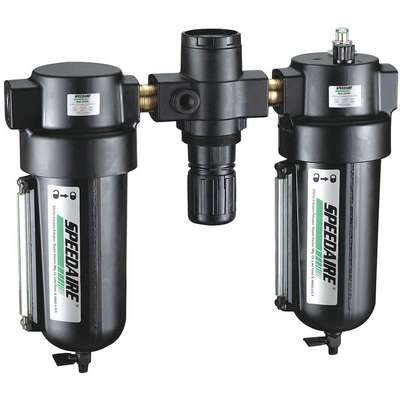

1" NPT Filter/Regulator/Lubricator with 5 to 150 psi Adjustment Range

Hover over image to magnify
Frl,1 In NPT,Micromist,Regulat
PI_Asset_1371190
Frl,1 In NPT,Micromist,Regulat
PI_Asset_1371190

#913103-9 | Pkg Qty: 1

$391.71 pkg | $391.71 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Adjustment
5 to 150 psi
Maximum Temperature (Deg. F)
175
Air Consumption
scfm
Mfr. Part Number
4ZM01
Bowl Material
Metal with Sight Glass
NPT
1 in.
Brand
SPEEDAIRE
Number of Pieces
3
Drain Type
Manual
Overall Height
12.45 in.
Filter Rating
5 micron
Overall Width
14-3/4 in.
Item
Filter/Regulator/Lubricator
Package Quantity
1
Maximum Flow
275 cfm
Pipe Size
1 in. NPT
Maximum Flow (CFM)
275 CFM
Shipping Weight
11 lb.
Maximum Pressure
250 psi
Type
3 Piece Combination
Maximum Temperature
175 deg. F
Width
14-3/4 in.
General
Adjustment Location
Top
For Substance Type
Air
Adjustment Mechanism
Knob
Gauge Port Size
1/4 in NPT
Adjustment Mechanism Material
Reinforced Nylon
Lubricator Bowl Capacity
32 oz
Adjustment Range
5 to 150 psi
Lubricator Bowl Guard Included
Yes
Adjustment Range - Air Treatment
5 to 125 psi
Lubricator Bowl Guard Material
Aluminum
Air Flow Direction
Left to Right
Lubricator Bowl Material
Aluminum
Air Inlet Gender
Female
Lubricator Type
Micro Mist
Air Inlet Type
NPT
Lubricator Type Included
Micro-Mist
Air Outlet Gender
Female
Max. Flow - Air Treatment
275 cfm
Air Outlet Size
1 in
Max. Flow Range - Air Treatment
201 to 300 cfm
Air Outlet Type
NPT
Max. Incoming Pressure - Air Treatment
250 psi
Bowl Material - Air Treatment
Metal with Sight Glass
Max. Pipe Run - Air Treatment
15 m
Bowl Size - Air Treatment
32.0 oz
Maximum Regulated Pressure
1 MPa
Connection Size - Air Treatment
1 in NPT
Minimum Operating Pressure
0.05 MPa
Differential Pressure Indicator Included
Yes
Minimum Regulated Pressure
0.05 MPa
Drain Part Compatibility
114X35
Modular Connection
No Modular Connection
Filter Bowl Capacity
32 oz
Pressure Gauge Port Gender
Female
Filter Bowl Guard Included
Yes
Pressure Gauge Port Size
1/4 in
Filter Bowl Guard Material
Aluminum
Pressure Gauge Port Type
NPT
Filter Bowl Material
Metal
Recommended Lubricant
ISO VG 32
Filter Element Material
Bronze
Regulator Type
Relieving
Filter Rating - Air Treatment
5 micron
Sight Dome Included
Yes
For Fluid Type
Compressed Air
Sight Gauge Included
Yes
For Removal Of
Oil, Oil Odor, Oil Vapor, Particles, Water
Size - Air Treatment
Standard

Product Description

This 3-pc. unit combines filter, regulator, and MicroMist lubricator. Modular connector allows easy removal and swap out. Some assembly required. For filter, the CFM is based on 100 psig inlet and 5 psig pressure drop. For regulator, the CFM flow is measured with 100 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop. For lubricator, the CFM is based on 100 psig inlet and 5 psig pressure drop.
