WHITE-RODGERS

White-Rodgers Fan and Limit Control: Fan - Close on Rise/Limit - Open on Rise, SPDT, 100°F_265°F Closing, Adj

Hover over image to magnify

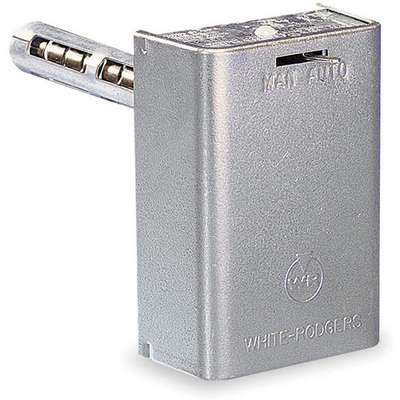

Fan/Limit Control
Fan/Limit Control

#913099-1 | Pkg Qty: 1

$140.14 pkg | $140.14 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
WHITE-RODGERS
Package Quantity
1
Depth
1-5/8 in.
Shipping Weight
1.3 lb.
Height
4-3/8 in.
Switch Type
SPDT
Item
Fan and Limit Control
Width
3 in.
Mfr. Part Number
05D51 090S1
General
Contact Amp Rating @ 24V
Fan 5.6 Limit 6.0
Inductive Amps @ 120V
Fan 7.0 Limit 6.0
Element Insertion Length (In.)
8 in
Inductive Amps @ 240V
Fan 14.0 Limit 10.0
Fan Off Temp. (F)
Adjustable
Switch Action
Fan Close on Rise, Limit Open on Rise
Fan On Temp. (F)
Adjustable
Temp. Range (F)
Fan 50 to 265, Limit 100 to 300

Product Description

Use the WHITE-RODGERS™ fan and limit control to regulate fan or blower operation and as a high limit safety control. Single element type is ideal for applications with narrow space limitations. Designed to be interchangeable with other flush-mounted, single element fan and limits. Dial has individual pointers for fan cut-in and cut-out settings. Removable solid copper jumper between fan and limit switches. Summer fan switch allows ventilation without changing control settings. Slotted mounting holes for easy installation.
