LINCOLN ELECTRIC

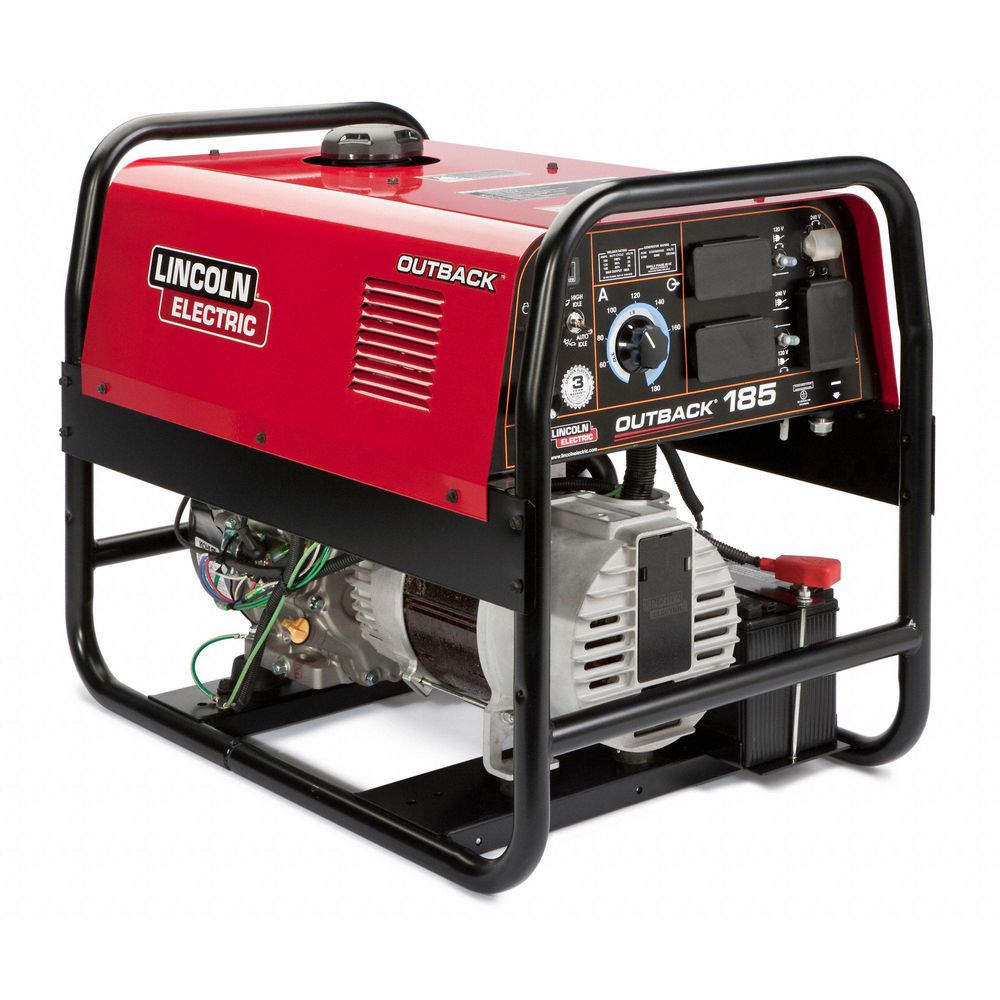

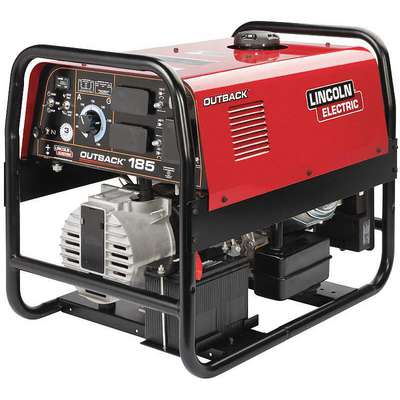

Lincoln Electric, Outback 185 Gas Powered Engine Driven Welder with Kohler Engine

Hover over image to magnify
Welder/ Generator,50-185 A,Ocv
PI_Asset_970193
PI_Asset_970194
PI_Asset_970195
PI_Asset_970196
Welder/ Generator,50-185 A,Ocv
PI_Asset_970193
PI_Asset_970194
PI_Asset_970195
PI_Asset_970196

#913034-8 | Pkg Qty: 1

$6,334.65 pkg | $6,334.65 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amperage Range
50-185 A
Mfr. Part Number
K2706-2
Brand
LINCOLN ELECTRIC
Package Quantity
1
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Depth
45-3/8 in.
Phase
Single
Engine Brand
Kubota
Series
Trailblazer 325 Diesel
Fuel Type
Diesel
Shipping Weight
330 lb.
Height
34-3/8 in.
Start Type
Electric
Horsepower
25 HP
Width
20 in.
Item
Engine Driven Welder
General
Engine Model
Kohler CH440
Rated Output at Duty Cycle (Stick)
150 A @ 20%, 130 A @ 60%
Fuel Tank Capacity Range
Less than 10 gal
Stick Welding Maximum Output Current
185 A
Generator Outlet Type
5-20R, 6-50R
Stick Welding Minimum Output Current
50 A
HP
14 hp
Stick Welding Output @ Duty Cycle
130 A @ 25 V, 60%, 150 A @ 25 V, 20%
Horsepower Range
Less than 15 hp
Welder Model Type
Base Model
Max. Amperage Range (Stick)
150 A – 300 A
Welder Type
Base Model
Rated Output CC/DC
100A DC/ 25V/ 100%130A DC/ 25V/ 60%150A DC/ 25V/ 20%
Welding Mode
CC

Product Description

Outback 185 Features Low-Lift Grab Bars (Patent-Pending) For More Leverage For Lifting Unit On And Off Truck Beds, The 1-1/4 In. (32 Mm) Diameter Rugged Tube Frame Is Great For All-Around Sturdy Protection And Is The Largest Diameter Tube Frame In Its Class Also Features A 6.8 Gallon (25.7 Liter) Fuel Tank For Extended Run Times, Less Frequent Re-Fueling. The Outback 185 Also Has A Large Fuel Fill Opening For Easy Re-fueling, DC Welding With Up To 5/32 In. (4 Mm) Stick Electrode; Up To 185 Amps Of DC Output For Many Applications, Use The 5,700 Watts Peak (5,200 Watts Continuous) AC Generator Power For Many Uses, Including A Grinder, Work Lights, Pump, Motor Starting, Or Emergency Power
