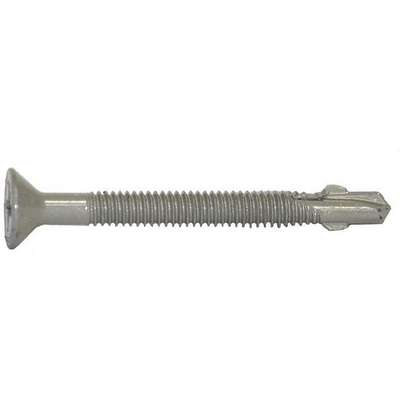

2-1/4" C1022 Steel Self Drilling Screw with Flat Head Type and Gray Spex Finish

Hover over image to magnify
Drilling Screw,#12-24,2-1/4 In
Drilling Screw,#12-24,2-1/4 In
Double tap image to magnify
Drilling Screw,#12-24,2-1/4 In
Drilling Screw,#12-24,2-1/4 In

#912942-1Pkg Qty: 250

$90.63 pkg | $0.36 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Basic Material
Steel
Material
C1022 Steel
Brand
APPROVED SUPPLIER
Mfr. Part Number
1092000
Drill Point Size
Teks 4
Pack Quantity
250
Driver Size
#3
Self-Drilling Screw Drive Type
Phillips
Finish
Gray Spex
Self-Drilling Screw Head Type
Flat
Head Angle
90 deg.
Shipping Weight
4.75 lb.
Head Color
Gray
System of Measurement
Fractional
Head Diameter
0.563 in.
Thread Size
#12-24
Item
Self Drilling Screw
Type
Imperial
Length Under Head
2-1/4 in.
General
Application
Attaches 3/4 to 1to 3/8 in. Wood, .125 to .250 in. Steel. Drill and Tap Capacity is .125 to .250 in.
Maximum Drilling Thickness
0.25 in
Drill Tip Length
9/16 in

Product Description

Self-Drilling Sheet Metal Screws

  • Package quantities are exact Meet SAE J78 standard
  • 1-pc., 1-side-installation fasteners drill their own holes and form their own internal mating threads. Climacoat finish prevents rust from bleeding into substrate. Climaseal® corrosion-resistant finish provides excellent resistance to most forms of abrasion and torque. Gray Spex corrosion-resistant finish on No. 36K145 is an organic waterborne coating, applied with a state-of-the-art process that eliminates Phillips recess fill problems.

Documents

ITW BUILDEX TEKS Wood to Metal Fasteners Product Data Sheet
