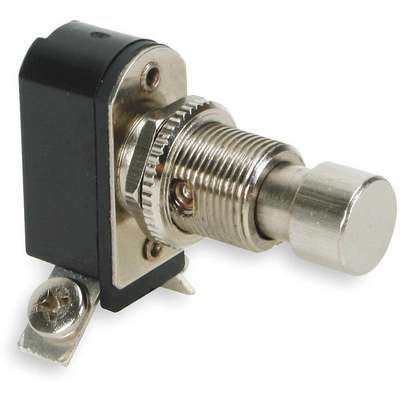

Power First SPST Miniature Push Button Switch, On/Off with Screw Terminals

Hover over image to magnify

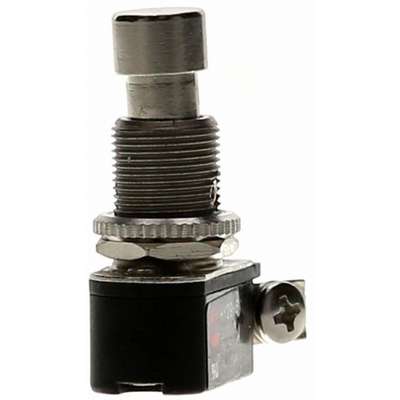

Miniature Push Button Switch,
PI_Asset_1367696
Miniature Push Button Switch,
PI_Asset_1367696

#912906-9 | Pkg Qty: 1

$12.11 pkg | $12.11 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
6 A @ 125 VAC, 3 A @ 250 VAC
Mounting Hole
1/2 in. dia.
Action
Maintained
Mounting Type
Panel
Amperage
6 A
Number of Connections
2
Brand
POWER FIRST
Operating Temperature Range
149 deg. F
Contact Form
SPST
Package Quantity
1
Contact Rating
3 A @ 250 VAC
Shipping Weight
.06 lb.
Contact Rating @ 125 V (Amps)
6
Stem Diameter
2022-01-02
Contact Rating @ 250 V (Amps)
3
Stem Diameter/Thread Size
10.3mm x 15/32-32UNS-2A
Contact Type
SPST
Stem Length
1.063 in.
Item
Miniature Push Button Switch
Switch Function
On/Off
Mfr. Part Number
2VLN3
Terminals
Screw
Mounting Dimension
1/2 in. dia.
Type
Maintained
General
Operating Temp. Range
To 149°F
Stem Dia. and Thread Size
10.3mm x 15/32-32UNS-2A
Standards
UL

Product Description

This miniature pushbutton switch is designed for use with shallow back panel applications including alarms, warning devices, and test equipment.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9129069
