LUMAPRO

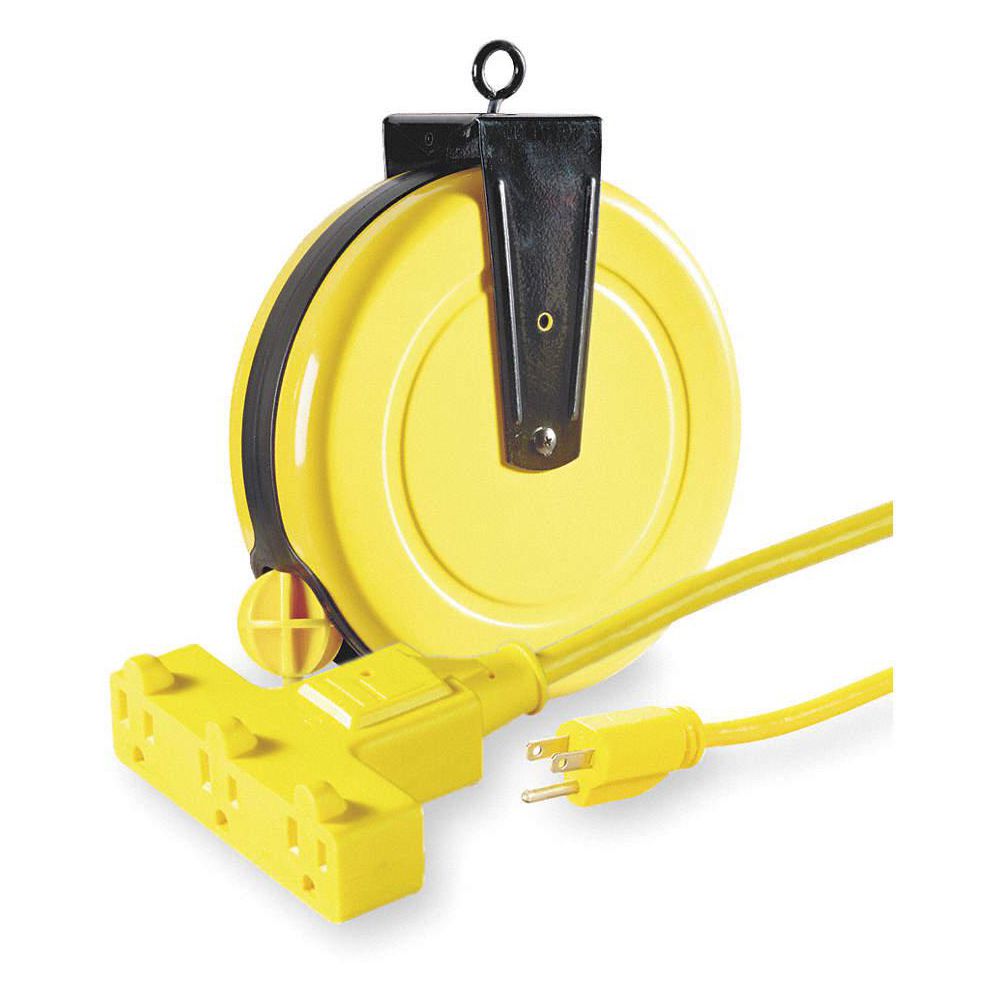

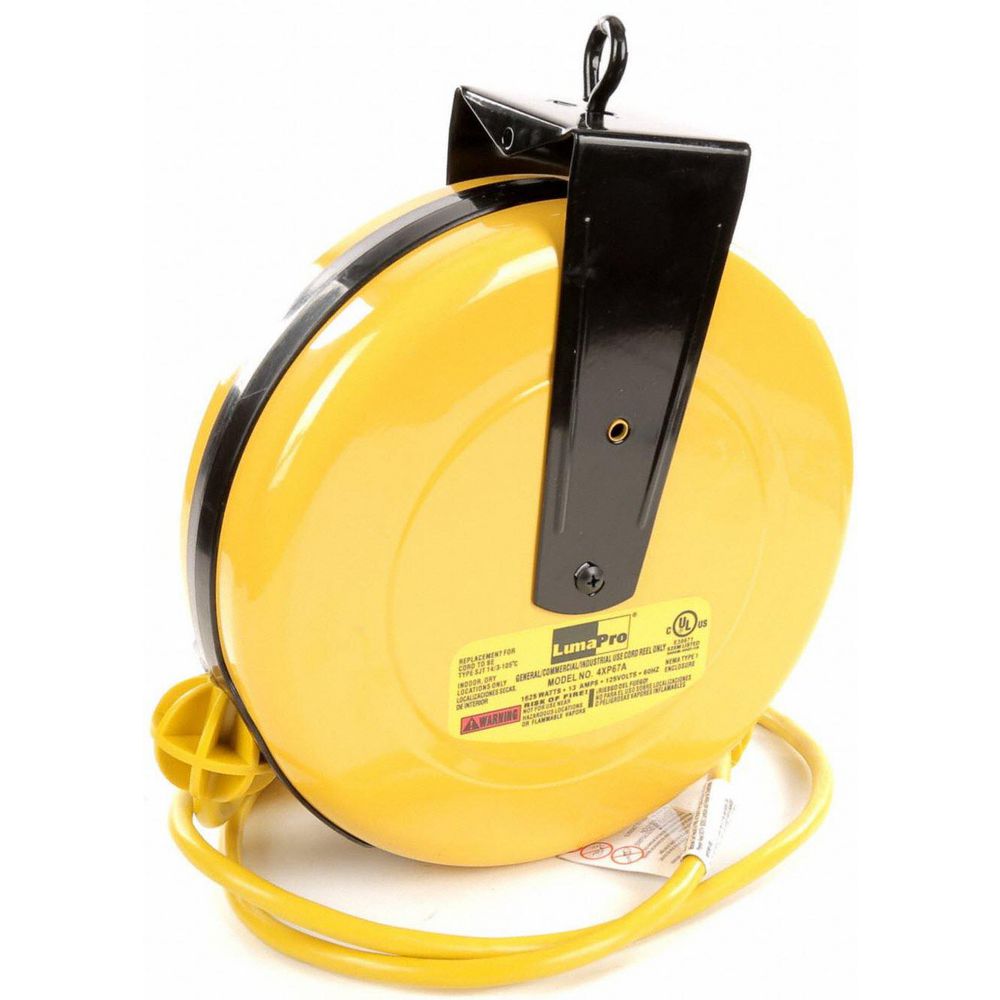

LumaPro 30 ft. Extension Cord Reel; 120 VAC; Yellow Reel Color

Hover over image to magnify
Reel,Cord,13 A,14 Awg
PI_Asset_1364852
Reel,Cord,13 A,14 Awg
PI_Asset_1364852
Double tap image to magnify
Reel,Cord,13 A,14 Awg
4XP67_SS01_R01_C23
Reel,Cord,13 A,14 Awg
4XP67_SS01_R01_C23

#912895-6Pkg Qty: 1

$116.51 pkg | $116.51 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Brand
LUMAPRO
NEC Cord Designation
SJT
Cord Color
Yellow
Number of Conductors
3
Cord Ending NEMA Configuration
5-15R
Number of Outlets
3
Cord Included
Yes
Overall Depth
3 in.
Cord Length
30 ft.
Overall Height
11-1/2 in.
Enclosed Reel
Yes
Overall Width
9-1/2 in.
Enclosure Rating
Not Rated
Package Quantity
1
Feeder Cord Ending
Grounding Plug
Reel Color
Yellow
Feeder Cord Ending NEMA Configuration
5-15P
Reel Material
Steel
Feeder Cord Length
2 ft.
Reel Mounting
Detachable Ceiling, Wall
Indoor/Outdoor
Indoor
Shipping Weight
9.3 lb.
Item
Extension Cord Reel
Temperature Range
-30 deg. F to 140 deg. F
Maximum Amps
13
Voltage
120 VAC
Mfr. Part Number
4XP67
Wire Size
14 AWG
General
Feeder Cord Ending Configuration
NEMA 5-15P
Retractable Cord Ending
Triple Tap Connector
Gauge/Conductor - Ext. Cords and Outlet Strips
14/3
Retractable Cord Ending Configuration
NEMA 5-15R
Grade - Ext. Cords and Outlet Strips
General Purpose
Standards
cULus
Includes
Circuit Breaker, Mounting Hardware
Tension Method
Ratchet Lock
Includes Cord
Yes
Voltage - Ext. Cords and Outlet Strips
120VAC
Max. Amps - Ext. Cords and Outlet Strips
13.0
Winding Method
Spring Retraction

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
