STANLEY

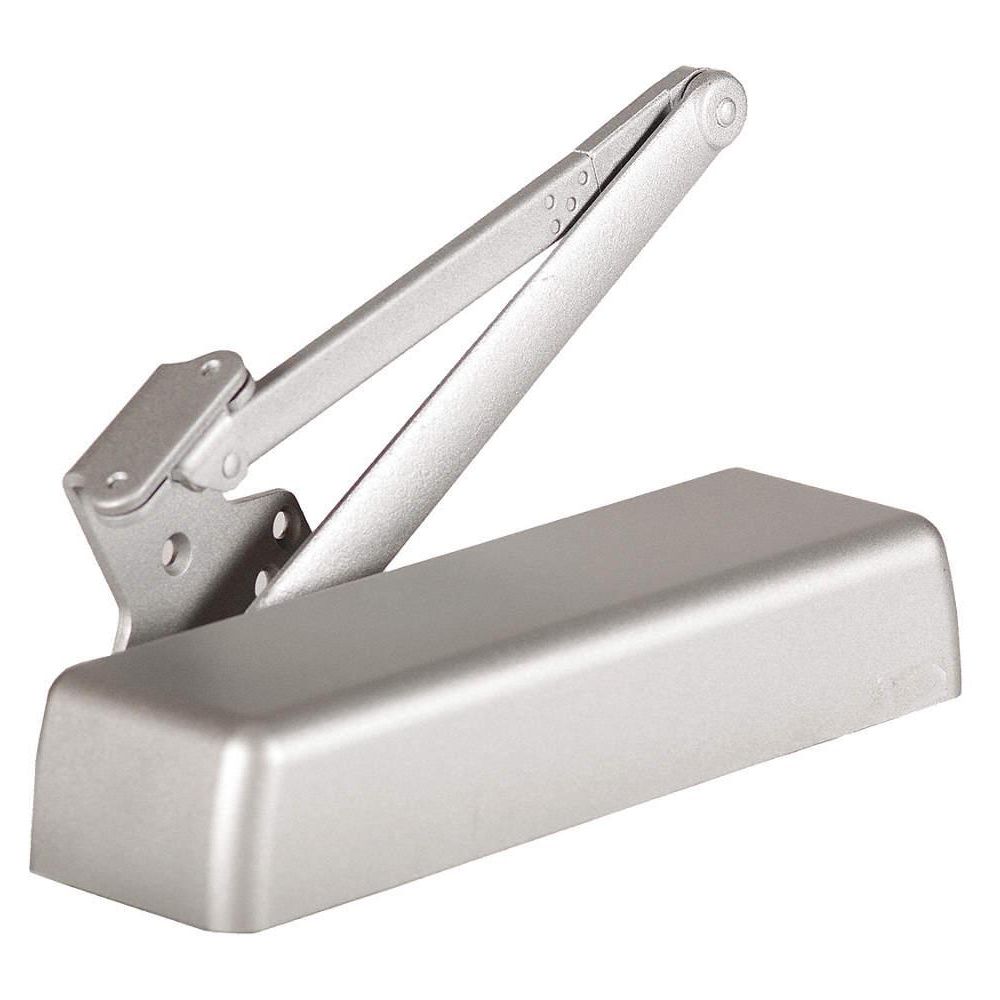

Stanley QDC 100 Series, Extra Heavy Duty, Non Hold Open Door Closer; 2-1/4" Wall Projection

Hover over image to magnify
Door Closer, Heavy Duty, G1
Door Closer, Heavy Duty, G1

#912852-3 | Pkg Qty: 1

$299.67 pkg | $299.67 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ADA Compliance
Yes
Housing Height
3-1/2 in.
Arm Material
Carbon Steel
Housing Length
12-3/16 in.
Arm Type
Tri Pack
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Interior/Exterior
Interior and Exterior
Brand
STANLEY
Item
Door Closer
Closer Type
Non Hold Open
Ligature Resistant
No
Color Family
Silver
Mfr. Part Number
QDC111R689
Door Opening Width
130 deg.
Mounting Style
Parallel, Regular, Top Frame
Duty Rating
Extra Heavy Duty
Pack Quantity
1
Finish
Painted
Projection
2-1/4 in.
Hand Orientation
Non-Handed
Series
Stanley QDC 100
Hardware Included
Yes
Shipping Weight
12.05 lb.
Housing Depth
3-1/2 in.
Spring Size
Adjustable 1 to 6
General
ADA Compliant
Yes
Includes
Full Size Rounded Plastic Cover, Hex Nuts, Self Tapping Screws
Closer Mounting Style
Parallel, Regular, Top Frame
Interior Door Width
Up to 58 in
Closer Performance
Extra Heavy Duty
Max. Door Opening
130°
Closer Series
Stanley QDC 100
Power Rating
1 to 6
Closing Operation Mode
Hydraulic
Projection from Wall
2 1/4 in
Exterior Door Width
Up to 54 in
Standards
ANSI A156.4 Grade 1, UL and c

Product Description

Designed for harsh climates and extra heavy-duty environments, this hydraulic door closer utilizes all-weather fluid for optimal performance. It is constructed with cast-iron housing, a plastic cover, and an aluminum finish. It also features delayed action and back check. Includes wood and machine screws, sex nuts, and self-tapping screws. Fully adjustable from 1 to 6.
