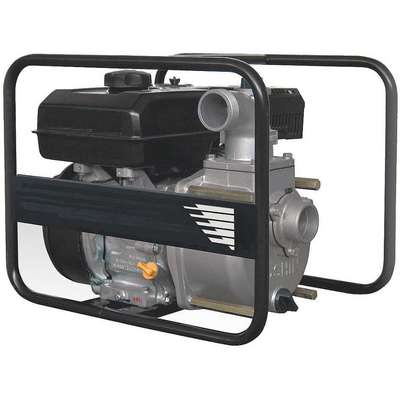

6.0 HP Aluminum 179cc Engine Driven Semi-Trash Pump, 3.8 qt. Tank Capacity

Hover over image to magnify
Semi-Trash Pump,2In NPT,6 Hp
Semi-Trash Pump,2In NPT,6 Hp

#912791-9 | Pkg Qty: 1

$510.14 pkg | $510.14 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
EPA III Approved and CARB Exampt Product
Inlet
2 in. NPT
Brand
APPROVED SUPPLIER
Item
Engine Driven Semi-Trash Pump
Casing Adapter
Spheroid Graphite Ductile
Length
22-13/64 in.
Check Valve
Buna N
Material of Construction
Aluminum
Connection
2 in. x 2 in.
Maximum Flow
153
Engine Brand
Koshin K180
Maximum Head
85 ft.
Engine RPM
3600
Maximum Pressure
37 psi
Engine Size
179 cc
Maximum Suction Lift
26 ft.
Engine/Motor Type
Gas
Mechanical Seal
Silicon Carbide, Buna N
Fuel Type
Gasoline
Mfr. Part Number
24D038
GPH
9180
NPT Port
2
GPM of Water @ 10 Ft. of Head
145.8
Number of Impellers
1
GPM of Water @ 20 Ft. of Head
137
Outlet
2 in. NPT
GPM of Water @ 30 Ft. of Head
128.6
Package Quantity
1
GPM of Water @ 40 Ft. of Head
118.7
Roll Bar Frame
Steel
GPM of Water @ 50 Ft. of Head
108.8
Seal Material
Buna N
GPM of Water @ 60 Ft. of Head
91.7
Self-Priming
Yes
GPM of Water @ 70 Ft. of Head
50.9
Sensor Type
Low Oil
GPM of Water @ 80 Ft. of Head
24-1/2
Shipping Weight
67 lb.
Height
19-1/8 in.
Solids Handling Capacity
3/4 in.
Horsepower
6
Tank Capacity
3.8 gal.
Ignition Type
Recoil-Start
Temperature Range
35 deg. F to 105 deg. F
Impeller
S.G Ductile
Type
Semi-Trash
Impeller Material
Spheroid Graphite Ductile
Volute/Wear Plate
Spheroid Graphite Ductile Iron
Impeller Type
Semi-Open
Width
16-9/64 in.
General
Application
Semi-Trash
HP
6 hp
Discharge Dia.
2 in
Impeller Design
Semi-Open
Discharge Standard
NPT
Inlet Dia.
2 in
Flow Rate @ 40 Ft. of Head
118.7 gpm
Inlet Standard
NPT
Flow Rate @ 60 Ft. of Head
91.7 gpm
Max. Diameter Solids
3/4 in
Flow Rate @ 80 Ft. of Head
24.5 gpm
Maximum Discharge Pressure
37 psi
Frame Design - Pumps
Full Tubular Frame
Pump Mechanism
Centrifugal

Product Description

These remote-location engine-driven trash and utility pumps are gasoline powered so they don't need to be placed near an electrical outlet, and they run for long periods of time between refueling. They transfer large amounts of water containing medium to large solids, and they drain water using an inlet hose so the pumps don't have to be placed in the water that needs to be drained. Pumps have a tubular frame to protect the engine and the pump.
