POWER FIRST

Power First 100 ft. Indoor, Outdoor Lighted Extension Cord; Max Amps: 20.0, Number of Outlets: 1, Yellow

Hover over image to magnify
Extension Cord,20A,10/3Ga,100Ft
PI_Asset_1356344
Extension Cord,20A,10/3Ga,100Ft
PI_Asset_1356344

#912780-1 | Pkg Qty: 1

$263.48 pkg | $263.48 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
POWER FIRST

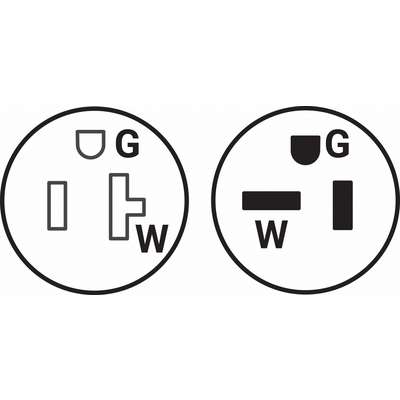

NEMA Connector
5-20R
Cord Ending Type
Single Connector
NEMA Plug Configuration
5-20P
Cord Length
100 ft.
NEMA Receptacle Configuration
5-20R
Cord Type
SJTOW
Nominal Outside Diameter
0.56 in.
Extension Cord Length
100 ft.
Number of Conductors
3
Extension Cord Outlet NEMA Configuration
5-20
Number of Outlets
1
Extension Cord Plug NEMA Configuration
5-20
Package Quantity
1
Extension Cords Group
90 to 100 ft.
Plug Configuration
Straight, No Swivel
Gauge/Conductor
10/3
Plug Style
Straight
Indoor/Outdoor
Indoor/Outdoor
Plug Type
Straight, No Swivel
Item
Lighted Extension Cord
Power Indicator
Yes
Jacket Color Family
Yellow
Shape
Round
Jacket Material
PVC
Shipping Weight
22.67 lb.
Lighted End
Yes
Standards
UL/CUL
Maximum Amps
20 A
Temperature Range (Deg. F)
-58 to 194 deg. F
Maximum Wattage
2,500 W
Voltage
125 VAC
Mfr. Part Number
4FZZ8
Watts
2500 W
NEC Cord Designation
SJTOW
Wire Size
10 AWG
General
Cord Shape
Round

Product Description

Outdoor extension cords with a single outlet consist of flexible electrical cable with a plug at one end and a single receptacle at the other end. They are commonly used in outdoor applications to provide power where the power source is located some distance away from the device, such as with landscaping equipment. These cords have a durable jacket that resists abrasion and harsh weather conditions, making them more robust for outdoor applications than indoor extension cords.

Extension cords are a length of flexible electrical cable used to bring power to a device located up to 100 ft. away. They are typically used when a device's cord is too short to reach a power source, such as an electrical outlet, or where outlets may be scarce. They have a two- or three-prong plug at one end that connects to the power source and a molded outlet at the other end that devices plug into. Extension cords with a single outlet have a single receptacle, while cords with multiple outlets have two or more receptacles. In general, the more power needed by a device, the thicker the extension cord (or lower the gauge) needs to be to support the electrical current flowing through the cord. Extension cords are commonly used to provide temporary power in a wide range of indoor and outdoor applications.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9127801
Extension Cord,20A,10/3Ga,100Ft
 NameItemDescription
Grainger DropshipGrainger Dropship4FZZ8Extension Cord,20A,10/
UNSPSC CODESUNSPSC CODES26121536
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002Extension Cord,20A,10/
