IDEAL

Ideal Push-In Connector, 3 Port, Orange, 18 to 12 AWG Stranded, 20 to 12 AWG Solid Wire Range

Hover over image to magnify
Push In Connector,3 Port,

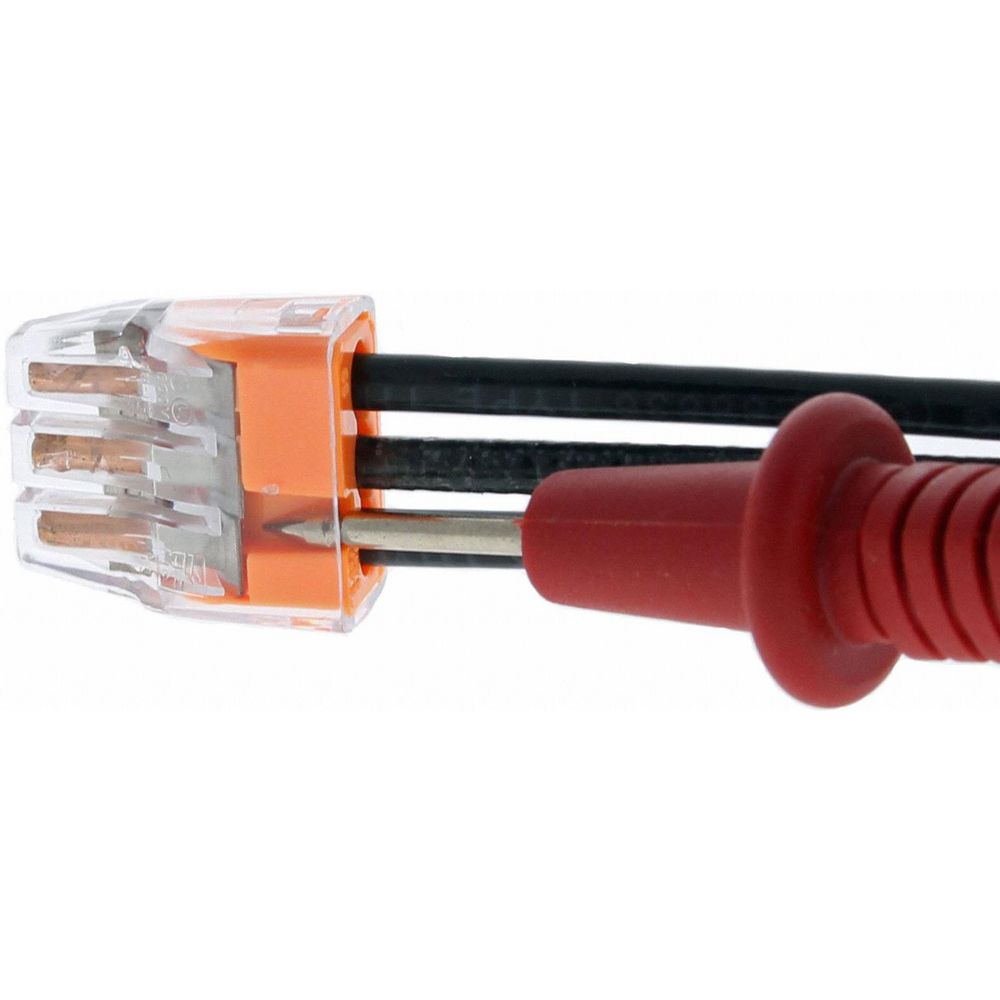

PI_Asset_965764
PI_Asset_965765

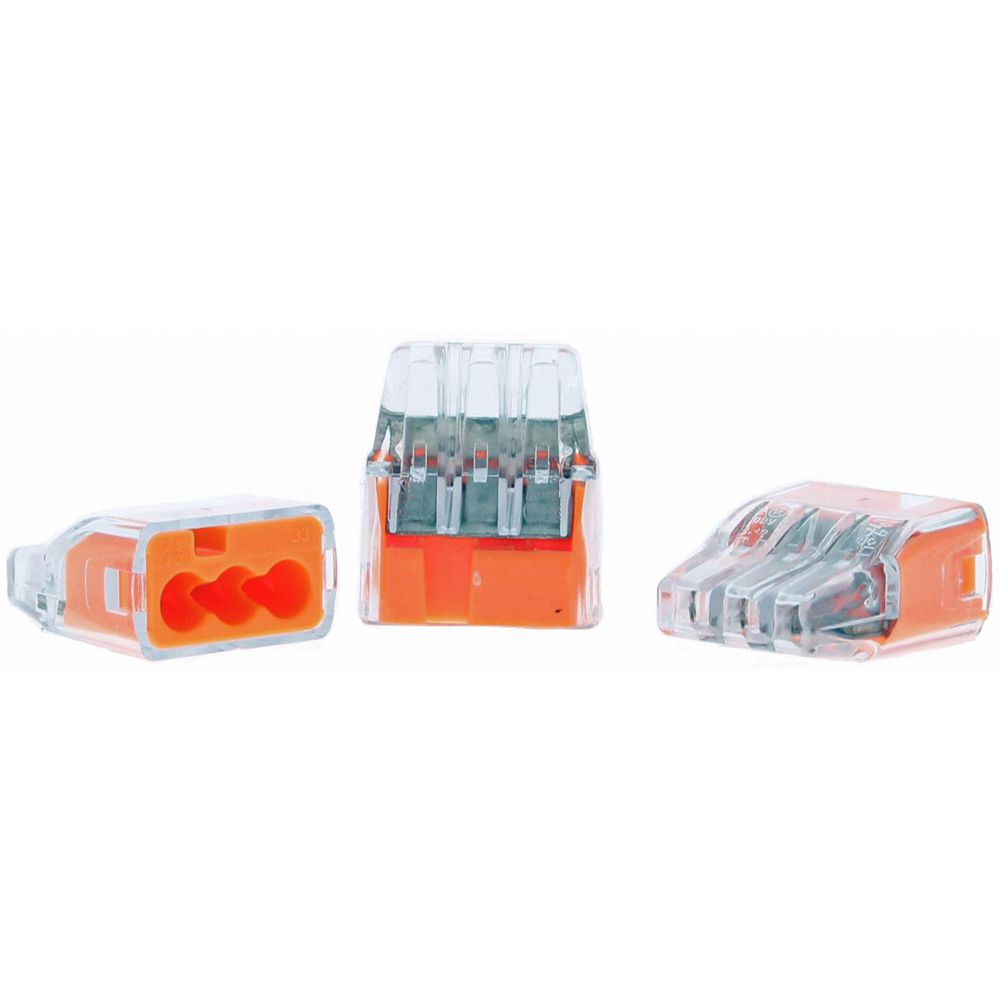

PI_Asset_965766
Push In Connector,3 Port,
PI_Asset_965764
PI_Asset_965765
PI_Asset_965766

#912779-6 | Pkg Qty: 100

$20.67 pkg | $0.21 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
IDEAL
Maximum Wire Size
12 Solid, 12 Stranded (?19 Strand), 18 Stranded (7 strand); 14 Tin-Bond Stranded (?19 Strand) AWG
Color Family
Orange
Mfr. Part Number
30-1033
Connector Type
3 Port
Minimum Wire Size
20 Solid, 16 Stranded (?19 Strand), 18 Stranded (7 strand); 18 Tin-Bond Stranded (?19 Strand) AWG
Description/Special Features
Polycarbonate Housing with Ergonomic Grip
Package Quantity
100
Height
0.38 in.
Shipping Weight
.56 lb.
Item
Push-In Connector
Standards
CSA Certified
Length
0.78 in.
Type
Push-In
Maximum Voltage
600 V
Wire Range
20 to 12 AWG Solid, 18 to 12 AWG Stranded
General
Compatible with Product Type
Twist-On Wire Connector
For Minimum Wire Size - Stranded
18 AWG
Contact Finish
Tin
For Wire Size
12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG
Current
20 A
RoHS Compliant
Yes
For Conductor Material
Copper, Tin-Plated Copper
Special Features
Polycarbonate Housing with Ergonomic Grip
For Maximum Wire Size - Solid
12 AWG
Strip Length
3/8 in
For Maximum Wire Size - Stranded
12 AWG
UL 94 Flammability Rating
V-2
For Minimum Wire Size - Solid
20 AWG
Wire Size Range
20 AWG – 12 AWG

Product Description

In-Sure™ Push-In Wire Connector meets standards for grounding and bonding applications, and a flame-retardant shell rated at 105°C (221°F). Its feature compact size makes installation easy. No-twist connection reduces repetitive motion fatigue. Low insertion force allows fast and easy connections. The clear shell gives visual verification of connection. Connector accepts solid or stranded wire.
