HUBBELL WIRING DEVICE-KELLEMS

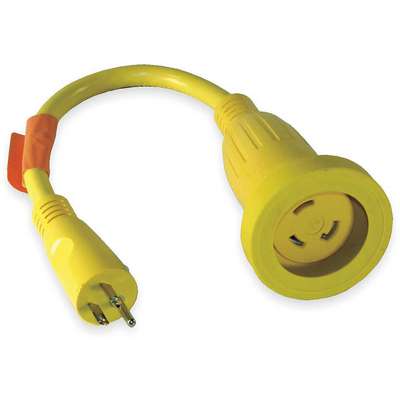

Hubbell Wiring Device-Kellems Locking Cord Adapter, Number of Outlets 1, 15.0, 120VAC, Plug Configuration NEMA 5-15P

Hover over image to magnify
Straight Marine Adapter,5-15P,
PI_Asset_927376
Straight Marine Adapter,5-15P,
PI_Asset_927376

#912776-3 | Pkg Qty: 1

$177.88 pkg | $177.88 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Plug Configuration
5-15P
Color Family
Yellow
NEMA Receptacle Configuration
L5-30
Connector Type
L5-30
Number of Outlets
1
Cord Length
2 ft.
Package Quantity
1
Gauge
10 AWG
Plug Configuration
2022-05-15
Item
Locking Cord Adapter
Shipping Weight
1.1 lb.
Jacket Color
Yellow
Temperature Range
-40 deg. F to 167 deg. F
Jacket Material
PVC
Voltage
120 V
Maximum Amps
30
Voltage Rating
125
Mfr. Part Number
HBL61CM22
Wire Size
10 AWG
NEMA Connector
L5-30R
General
Blade End Rating
15A 125V
NEMA Plug Configuration - Ext. Cords and Outlet Strips
5-15P
Blade End Style
Straight Blade
Slot End Rating
30A 125V
For Use With
1UBK1 (Mfr. No. HBL61CM08WLED), 3D961 (Mfr. No HBL61CM08)
Slot End Style
Twist-Lock«
Gauge - Ext. Cords and Outlet Strips
10 AWG
Voltage - Ext. Cords and Outlet Strips
120VAC
Max. Amps - Ext. Cords and Outlet Strips
30.0

Product Description

Straight-blade plug extension cord adapters are lengths of electrical cable that convert a device's locking power cord plug to a straight-blade plug for use in a compatible outlet receptacle. These cords have a plug at one end with straight, flat blades and a locking receptacle at the other end that the device plugs into.

Extension cord adapters are lengths of electrical cable used to create compatibility between a device's power cord plug and a power outlet receptacle when they are of different types. These adapters have a plug at one end that connects to the power source and a receptacle at the other end that the device plugs into. They are typically used to supply power to devices in industrial applications, such as power tools and machinery, where a variety of plug types and outlets are common. Limit current to the adapter's lowest rating to help prevent overheating.

Item Barcode
9127763
Straight Marine Adapter,5-15P,
 NameItemDescription
Grainger DropshipGrainger Dropship1UKB6Straight Marine
UNSPSC CODESUNSPSC CODES39121402
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002Straight Marine

For more product information by email, click here
