DAYTON

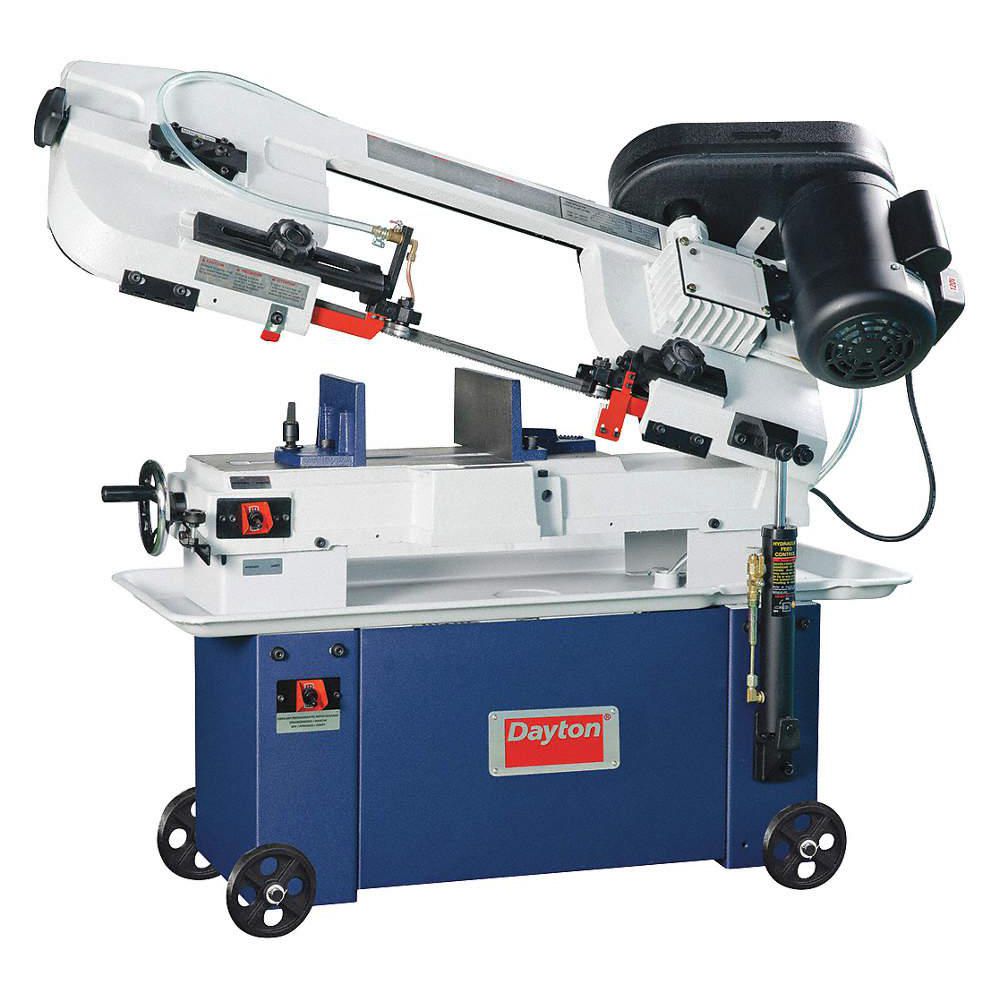

DAYTON 21C004 Horizontal, Stationary Band Saw; 93 in. Blade Length, 4 Speeds
Hover over image to magnify
#912775-6 | Pkg Qty: 1
$1,902.14 pkg | $1,902.14 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Required Items
Items below are required. They are not included and need to be ordered separately.
Technical Specifications
Key Specifications
Blade Length
93 in.
Operation
Manual
Blade Thickness
0.035 in.
Orientation
Horizontal
Brand
DAYTON
Overall Depth
18 in.
Current Rating
12.0/6.0 A
Overall Height
41 in.
Horsepower
1 HP
Overall Width
48 in.
Hz
60 Hz
Package Quantity
1
Item
Stationary Band Saw
Phase
1
Material Application
Metal
Shipping Weight
366 lb.
Mfr. Part Number
21C004
Voltage
120/240V AC
Number of Speed Settings
4
General
Blade Wheels Dia.
11-1/4 in.
Miter Angle Range
45 Degrees
Cutting Capacity Square
7 in.
Rectangular Cutting Capacity - Horizontal
7 in. x 12 in.
Features
Cast Iron Saw Heat and Table, Heat Duty Steel Base, Adjustable Blade Guides, Adjustable Flood Coolant System, Rapid Acting Vise, Worm and Pinion Oil Bath Drive Train, 2.25 gal. Coolant Tank, 4 - 5 Casters For Easy Portability, Chip Brush
Round Cutting Capacity - Horizontal
7 in.
Includes
Flood Coolant System (Coolant Not Included); Hydraulic Feed System; Workstop; 5 in. Plastic Casters; Blade
SFPM Range
86 to 260
Max. Blade Width
3/4 in.
Product Description
Mitering semi-automatic horizontal band saws have a head that pivots to make straight or angled cuts in metal, pipe, channel, and conduit. Semi-automatic band saws are programmed by the operator to make the cut after the operator places and clamps the workpiece in place.
