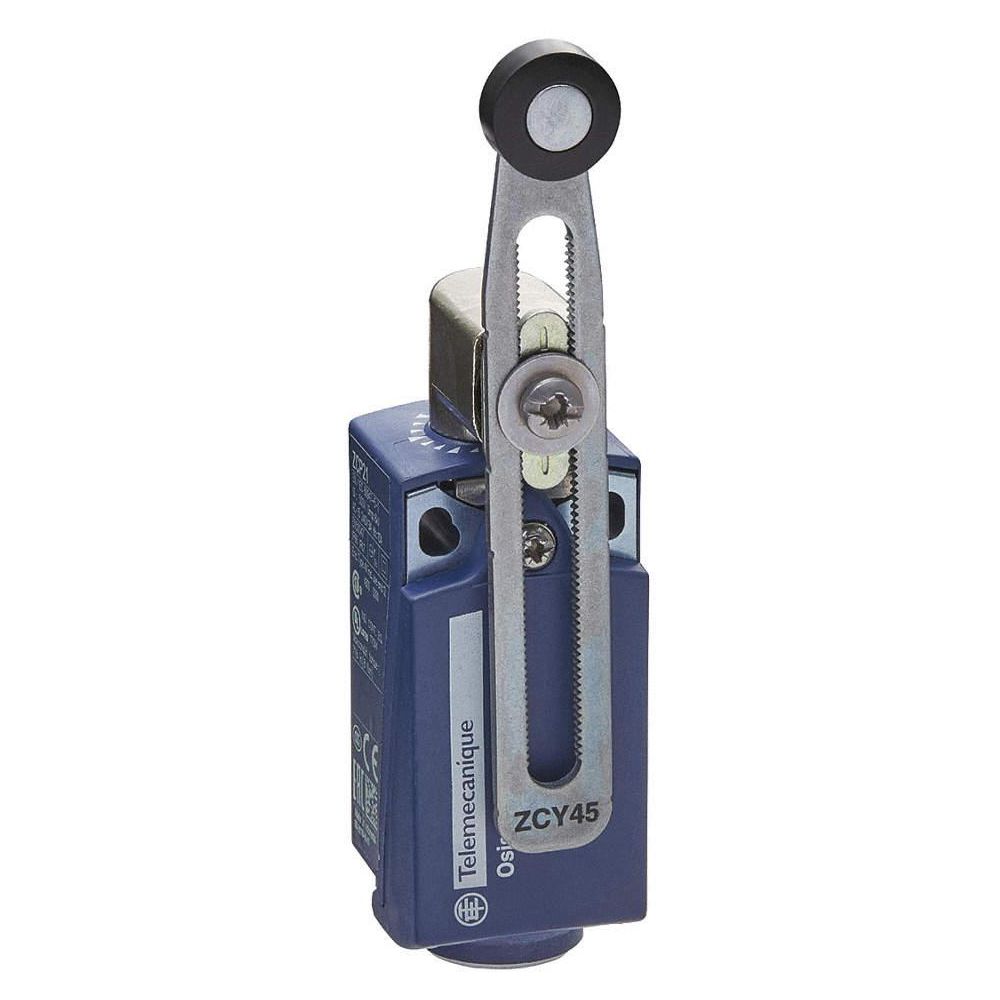

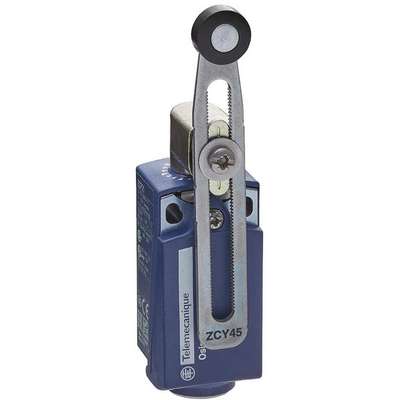

Telemecanique Sensors Rotary, Adjustable Roller Lever General Purpose Limit Switch; Location: Side, Contact Form: 1NC/1NO,

Name: Telemecanique Sensors Rotary, Adjustable Roller Lever General Purpose Limit Switch; Location: Side, Contact Form: 1NC/1NO,
Brand: TELEMECANIQUE SENSORS
SKU: 9127751
Price: 105.62 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#912775-1Pkg Qty: 1

$105.62 pkg | $105.62 ea

In Stock

Shipping to 43085

Expected to arrive Tue. Apr 01.

Technical Specifications

Key Specifications

AC Contact Rating

10 A @ 240 V

Item

General Purpose Limit Switch

Actuator Length

1.30 in. to 3.29 in.

Limit Switch Style

General Purpose Limit Switch

Actuator Location

Side

Mfr. Part Number

XCKP2145N12

Actuator Style

Adjustable Roller Lever

Movement

CW, CCW

Amperage

10 A

NEMA Rating

1, 2, 4, 6, 12, 13

Arm Material

Zinc

Operating Force

0.90 in.-lb.

Basic Actuator Style

Rotary

Operating Temperature Range

-1 deg. F to 158 deg. F

Body Depth

1.18 in.

Package Quantity

Body Height

2.56 in.

Replacement Body

4AE97

Body Material

Plastic

Replacement Head

ZCE45

Body Style

Miniature

Roller Diameter

0.63 in.

Body Width

1.22 in.

Roller Material

Thermoplastic

Boot Sealed Actuator

Roller Width

0.22 in.

Brand

TELEMECANIQUE SENSORS

Series

Xckp

Contact Form

1NC/1NO

Shipping Weight

.31 lb.

DC Contact Rating

10 A @ 240 V

Style

Rotary Head With Variable Length Plastic Roller Lever

Depth

1.18 in.

Threaded for Panel Mounting

Description/Special Features

1/2 in. NPT Conduit Entry

Travel

Total Travel 90

Electrical Connection

Screw Terminals

Type

Adjustable Lever

Hazardous Location

Voltage

240 VAC/DC

Height

2.56 in.

Voltage Rating

240 VAC/DC

IP Rating

Width

1.22 in.

General

AC Contact Rating - Limit Switch

10A @ 240V

DC Contact Rating - Limit Switch

10A @ 240V

Actuator Length - Limit Switch

1.30 in to 3.29 in

Mounting - Limit Switch

Surface

Actuator Location - Limit Switch

Side

Mounting Hole - Limit Switch

(2) 0.17 in dia

Actuator Style - Limit Switch

Adjustable Roller Lever, Rotary

Mounting Hole Pattern - Limit Switch

2 Hole Horizontal

Basic Actuator Style - Limit Switch

Rotary

Mounting Hole Spacing - Limit Switch

0.75 in

Body Depth - Limit Switch

1.18 in

Operating Temp. Range

-13° to 158°F

Body Height - Limit Switch

2.56 in

Special Features

1/2 in. NPT Conduit Entry

Body Style - Limit Switch

Miniature

Standards

UL, CSA, CE

Body Width - Limit Switch

1.22 in

Stem Thread - Limit Switch

No Stem

Contact Form- Switches

1NC/1NO

Product Description

This compact limit switch features durable design elements including thermoplastic roller material and plastic body material. Use in packaging, materials handling, conveying, machining, and food and beverage handling.
